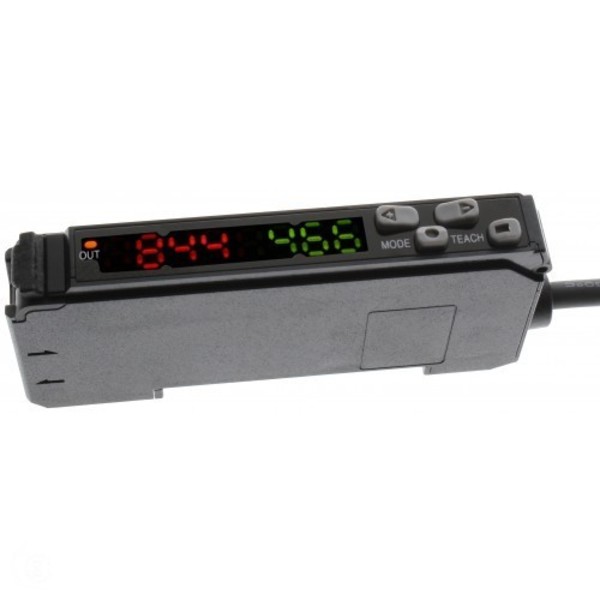

OPTEX D3RF-TN DIGITAL TEACH FO AMP STAND-ALONE - RED LED NPN - 2M
Starting At: $143.08
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: D3RF-TN
IMS Product Code: 1780461
Packaging: Sold Individually
Description:
Optex D3RF-TN Digital Teach FO Amp Stand-Alone - Red LED NPN - 2M Cable
Basic setup is as easy as pressing the teach button for 2 seconds. more advanced functions are located in a deeper setup layer for solving more complex applications
Hysteresis can be adjusted from 1% to 40%. This enables the sensor to be optimized for detecting slight differences in parts or applications with a lot of vibration
As fast as 16 microsecond response time for the stand alone versions and 22 microseconds for the interconnect versions. Utilizing a new method of emitting the beam the D3RF Series has increased sensing distances by as much as 5 times over previous generations of fiber amplifiers.
Specifications:
| Sensing Mode - Type | Fiber Optic Amplifier |
| Features | Dual 4 Digit Display |
| Sensitivity Adjustment | PB teach with 2-button fine adjust |
| Supply Voltage | 12 to 24 VDC |
| Light Source | Red LED |
| Indicators | Dual Digital LEDs Light Level (Red) Threshold (Green) |
| Model Type | Stand-Alone Type |
| Cross-Talk Prevention | Up to 16 amplifiers w/master-slave |
| LED Power Level Control | Settable levels: 100%, 50%, and 25% |
| Current Consumption | 39mA Max - 25mA max: 1ch/Power Saving Mode |
| Response Time | Settable: (7 Levels) from 16µs to 8ms |
| Output | NPN |
| Output Operation Mode | Light-on / dark-on selectable |
| Timer/Counter Option | Programmable time delay or up/down counter |
| Shock Rating | 50G |
| Protection | IP50 |
| Temperature | -25 to 55° C |
| Connection | 2 meter cable |
| Includes | BEF-WLL170 DIN bracket |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
