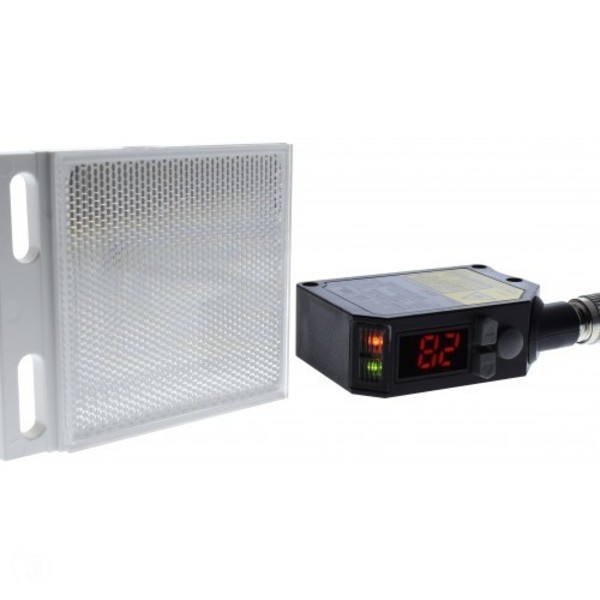

OPTEX DR-Q400TCN(E) 4 METER RETRO LASER NPN M8 4 PIN QD
Starting At: $196.00
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: DR-Q400TCN(E)
IMS Product Code: 1780500
Packaging: Sold Individually
Description:
Optex DR-Q400TCN(E) 4 Meter Retro Laser NPN M8 4 Pin QD
Can detect any transparent object PET - Glass - Plastic
The coaxial beams allows the sensor to be mounted behind glass or look through small holes or gaps without being affected by them.
In addition to the teach button there are also two threshold adjustment buttons. Fine adjustments can be made to the the threshold value after teaching by using the adjustment buttons.
AGC circuit monitors the incoming light level to maintain reliable operation even in duty, dirty conditions
0.3mm Repeat accuracy is perfect for precision detection applications.
Specifications:
| Sensing Mode | Polarized Retro-Reflective for Transparent Object Detection |
| Features | Coaxial type beam provides best in class sensor for all transparent targets: PET, film, glass, or plastic. Automatic gain control compensates for contaminated areas. |
| Operation Voltage | 10 to 30VDC |
| Current Consumption | 35mA |
| Light Source | Red Laser Diode 650nm |
| Light Source Output | Max 2mW 4µs |
| FDA Laser Class | Class II |
| Sensing Distance | 0 to 4m |
| Spot Size | Ø20mm at 3.5m |
| Repeatability | 0.5mm |
| Hysteresis | 1% ~ 4% adjustable |
| Sensitivity Adjustment | Teaching - Manual/Remote Input |
| Display | 7 segment 3 digit LED |
| External Input | Laser Off or Teaching |
| Response Time | 0.7ms |
| Control Output | NPN |
| Timing Option | On-delay, Off-delay, One shot, On/Off-delay and On/One shot delay |
| Housing | ABS |
| Operation Temperature | -10 to +50° C |
| Protection | IP 67 |
| Connection | M8 4P QD |
| Includes | BEF-W100A Mtg Brkt and P250F Reflector |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
