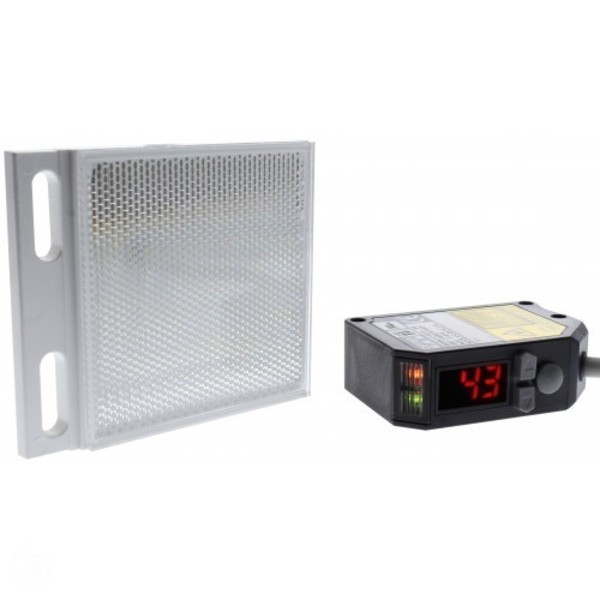

OPTEX DR-Q400TN(E) 4 METER RETRO LASER NPN 2 METER CABLE

MSRP: $200.00
Starting At: $196.00

Quick Overview

Manufactured By: OPTEX
Manufacturer Part Number: DR-Q400TN(E)
IMS Product Code: 1780512
Packaging: Sold Individually

Description:

Optex DR-Q400TN(E) 4 Meter Retro Laser NPN 2 Meter Cable

Can detect any transparent object PET - Glass - Plastic

The coaxial beams allows the sensor to be mounted behind glass or look through small holes or gaps without being affected by them.

In addition to the teach button there are also two threshold adjustment buttons. Fine adjustments can be made to the the threshold value after teaching by using the adjustment buttons.

AGC circuit monitors the incoming light level to maintain reliable operation even in duty, dirty conditions

0.3mm Repeat accuracy is perfect for precision detection applications.

Specifications:

Sensing ModePolarized Retro-Reflective for Transparent Object Detection
FeaturesCoaxial type beam provides best in class sensor for all transparent targets: PET, film, glass, or plastic. Automatic gain control compensates for contaminated areas.
Operation Voltage10 to 30VDC
Current Consumption35mA
Light SourceRed Laser Diode 650nm
Light Source OutputMax 2mW 4µs
FDA Laser ClassClass II
Sensing Distance0 to 4m
Spot SizeØ20mm at 3.5m
Repeatability0.5mm
Hysteresis1% ~ 4% adjustable
Sensitivity AdjustmentTeaching - Manual/Remote Input
Display7 segment 3 digit LED
External InputLaser Off or Teaching
Response Time0.7ms
Control OutputNPN
Timing OptionOn-delay, Off-delay, One shot, On/Off-delay and On/One shot delay
HousingABS
Operation Temperature-10 to +50° C
ProtectionIP 67
Connection2m cable
IncludesBEF-W100B Mtg Brkt and P250F Reflector




Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 5 Days
