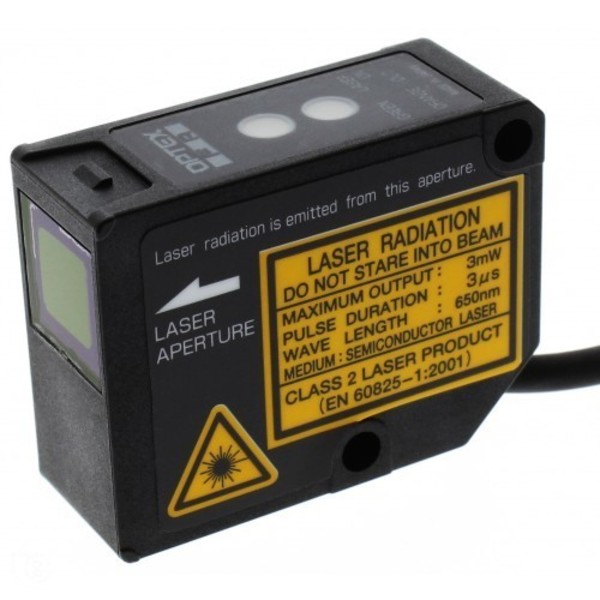

OPTEX DSD-100 DIFFUSE LASER HEAD 1 METER RANGE
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: DSD-100
IMS Product Code: 1780536
Packaging: Sold Individually
Description:
Optex DSD-100 Diffuse Laser Head 1 Meter Range
The DSD-100 laser head has up to a 1 meter sensing distance. The coaxial optics and small beal spot make it a really good choice for thread detection from longer distances thatn typcial fiber optic solutions.
Specifications:
| Sensing Mode | Diffuse Reflective |
| Features | Coaxial Beam |
| Supply Voltage | Order D2SA amplifier separately |
| Operation Temperature | -10 to +55° C |
| Sensing Distance | 1 meter |
| Repeatability / Response Time | 0.2mm |
| Light Source | Red Laser Diode |
| Wave Length | 650nm |
| Maximum Output | 3 mW |
| Laser Class IEC / JIS | Class 2 |
| Laser Class FDA | Class II |
| Laser Spot Size (Diffuse Reflective) | Ø1mm at 1 meter |
| Digital Control Output | Requires D2SA amplifier |
| Analog Output | Requires D2SA amplifier |
| Protection / Enclosure Type | IP67/PC (case, cover) Glass (lens) |
| Connection | 2 meter with attached amplifier connector |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
