OPTEX DSR-5000 RETROREFLECTIVE LASER 50 METER RANGE
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: DSR-5000
IMS Product Code: 1780538
Packaging: Sold Individually
Description:

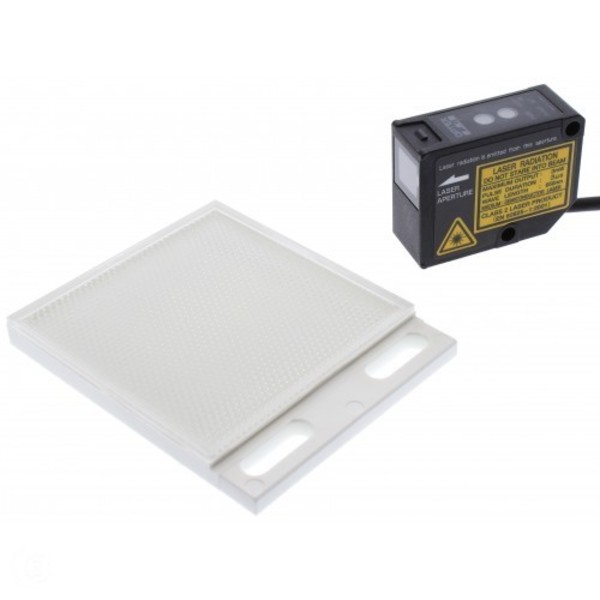

Optex DSR-5000 Retroreflective Laser 50 Meter Range
The DSR-5000 is designed to operate at distances up to 50 Meters
Specifications:
| Sensing Mode | Polarized Retro-Reflective |
| Features | Coaxial Beam. Reflector is included |
| Supply Voltage | Order D2SA amplifier separately |
| Operation Temperature | -10 to +55° C |
| Sensing Distance | 50 meter |
| Repeatability / Response Time | 0.2mm |
| Light Source | Red Laser Diode |
| Wave Length | 650nm |
| Maximum Output | 3 mW |
| Laser Class IEC / JIS | Class 2 |
| Laser Class FDA | Class II |
| Laser Spot Size (Diffuse Reflective) | Ø2mm at 2 meter |
| Digital Control Output | Requires D2SA amplifier |
| Analog Output | Requires D2SA amplifier |
| Protection / Enclosure Type | IP67/PC (case, cover) Glass (lens) |
| Connection | 2 meter with attached amplifier connector |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
