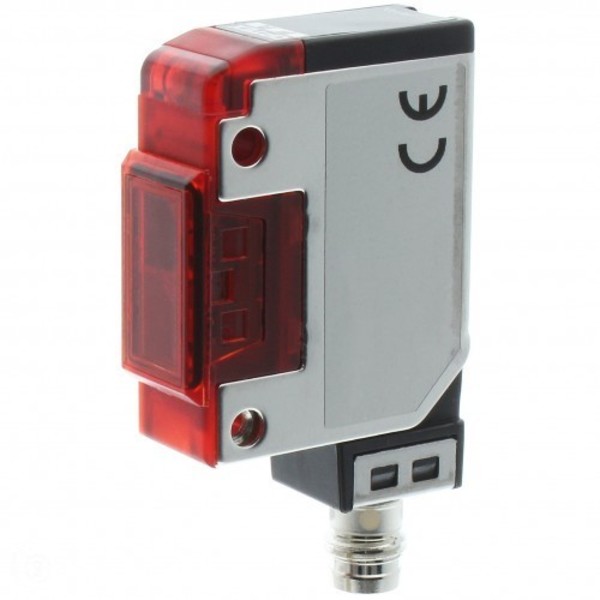

OPTEX KD-40CP STAINLESS STEEL ENCASED DIFFUSE 400MM PNP M8 QD

MSRP: $105.00
Starting At: $96.60

Quick Overview

Manufactured By: OPTEX
Manufacturer Part Number: KD-40CP
IMS Product Code: 1780814
Packaging: Sold Individually

Description:

Optex KD-40CP Stainless Steel Encased Diffuse 400mm PNP M8 QD

The stainless steel housing helps to protect the sensor against mechanical damage if it is hit by passing objects

The built in mounting nuts make installation easy and efficient, the problems of damaged threads due to overtightening has been eliminated.

The noise resistant internal circuitry is designed in accordance with the strict VDE standard.

Specifications:

Sensing Mode / TypeDiffuse
Sensing Distance400mm
Overall Sensing Distance400mm
Resolution / Min Detectable Object
Light SourceRed LED
Supply Voltage10 to 30 VDC
Current Consumption20mA max
Response Time0.7ms
Sensitivity Adjustment1-turn potentiometer
Hysteresis0.2
OutputPNP
Output Operation ModeLO/DO Selectable
MaterialABS (case) PC (lens) SUS304 (cover)
ProtectionIP67
Shock Rating100G
Temperature-25 to 55° C
Special FeaturesCompact SUS
ConnectionM8 4 pin QD
IncludesMounting bracket/screws

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 5 Days
