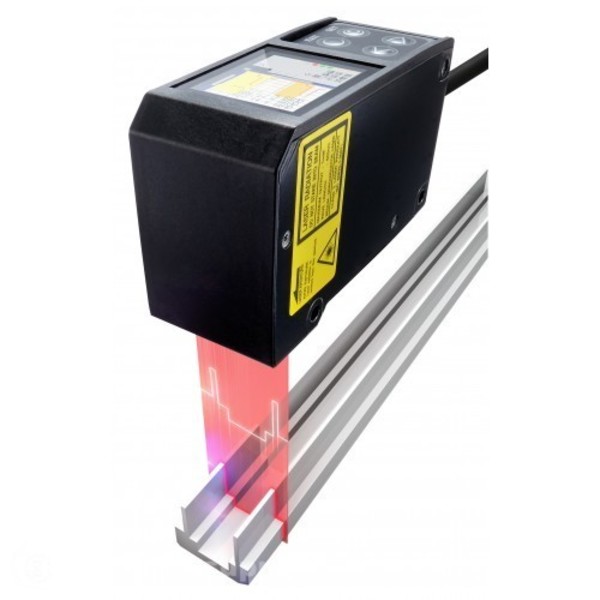

OPTEX LS-100CN 2D LASER PROFILE SENSOR ANALOG + NPN

MSRP: $7,700.00
Starting At: $7,546.00

Quick Overview

Manufactured By: OPTEX
Manufacturer Part Number: LS-100CN
IMS Product Code: 1782925
Packaging: Sold Individually

Description:

Optex LS-100CN 2D Laser profile Sensor Analog + NPN

The new LS Series of profile measurement sensors uses revolutionary new processes to give you high speed, two dimensional measurements that simply weren't possible before. The laser line beam provides high speed, high precision measurement of height and width and handles high-precision two-dimensional measurement applications that are not possible with spot beam laser measurement lasers. This newly designed proprietary system delivers high-speed measurements in a compact size at a very cost effective price.

The LS Series can be configured in four easy steps: imaging, profile, area measurement,amd calculation, and result judgment and output

Specifications:

Description2D Displacement for Profile Measurement
Supply Voltage12-24VDC (±10%)
Operation Temperature-10 to +40° C
Measurement Range100mm ±25mm
Sensing Window75 to 125mm
RepeatabilityZ Axis: 2µm X Axis: 25µm
Light SourceRed Laser Diode
Wave Length655nm
Maximum Output1 mW
Laser Class IEC / JISClass 2
Laser Class FDAClass II
Laser Spot Size (Diffuse Reflective)0.3 x 32mm at 100mm
LinearityZ Axis: ±50µm (±0.1% of F.S.)
Temp Drift±0.05% /°C of F.S.
Digital Control Output3 ea NPN output
Analog Output4-20mA
Serial CommunicationRS-485
Protection/Enclosure TypeIP67/Die-Cast Zinc & PC/Glass Lens
ConnectionConnector. Order STL-0H12 Style




Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 5 Days
