OPTEX LS-100CP LASER PROFILE SENSOR ANALOG + PNP
Starting At: $7,546.00
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: LS-100CP
IMS Product Code: 1782936
Packaging: Sold Individually
Description:

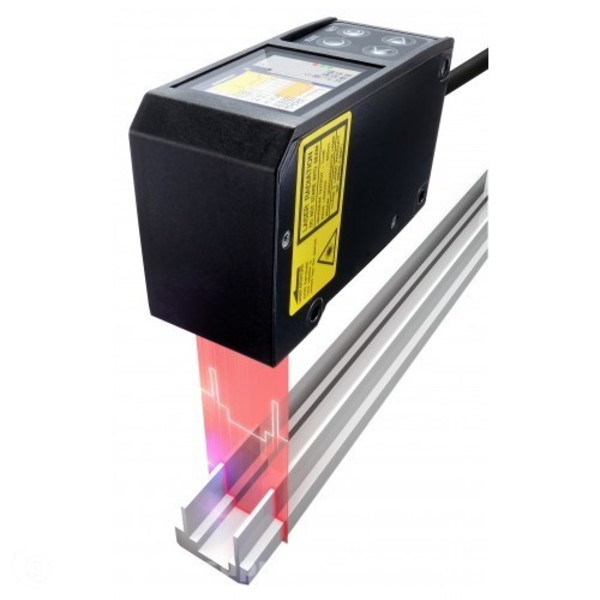

Optex LS-100CP Laser Profile Sensor Analog + PNP
The new LS Series of profile measurement sensors uses revolutionary new processes to give you high speed, two dimensional measurements that simply weren't possible before. The laser line beam provides high speed, high precision measurement of height and width and handles high-precision two-dimensional measurement applications that are not possible with spot beam laser measurement lasers. This newly designed proprietary system delivers high-speed measurements in a compact size at a very cost effective price.
The LS Series can be configured in four easy steps: imaging, profile, area measurement,amd calculation, and result judgment and output
Specifications:
| Description | 2D Displacement for Profile Measurement |
| Supply Voltage | 12-24VDC (±10%) |
| Operation Temperature | -10 to +40° C |
| Measurement Range | 100mm ±25mm |
| Sensing Window | 75 to 125mm |
| Repeatability | Z Axis: 2µm X Axis: 25µm |
| Light Source | Red Laser Diode |
| Wave Length | 655nm |
| Maximum Output | 1 mW |
| Laser Class IEC / JIS | Class 2 |
| Laser Class FDA | Class II |
| Laser Spot Size (Diffuse Reflective) | 0.3 x 32mm at 100mm |
| Linearity | Z Axis: ±50µm (±0.1% of F.S.) |
| Temp Drift | ±0.05% /°C of F.S. |
| Digital Control Output | 3 ea PNP output |
| Analog Output | 4-20mA |
| Serial Communication | RS-485 |
| Protection/Enclosure Type | IP67/Die-Cast Zinc & PC/Glass Lens |
| Connection | Connector. Order STL-0H12 Style |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
