OPTEX NF-DB01-10 M6 DIFFUSE W/ Ø2.5X5 SLEEVE COAXIAL
Starting At: $88.20
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF-DB01-10
IMS Product Code: 1780986
Packaging: Sold Individually
Description:

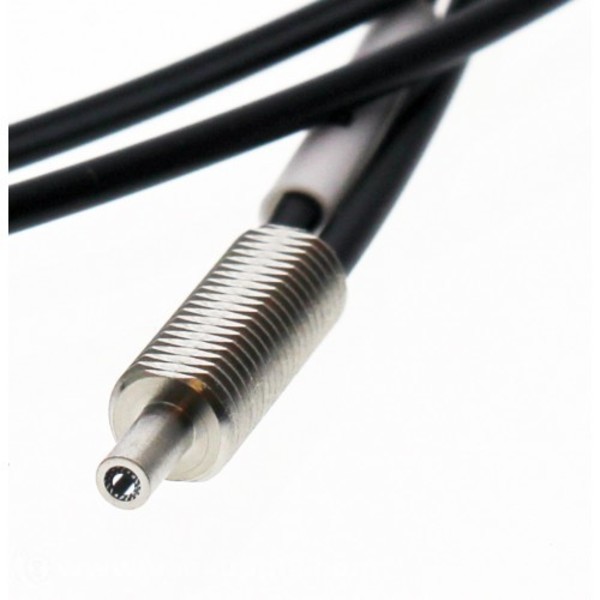

Optex NF-DB01-10 M6 Diffuse w/ Ø2.5x5 Sleeve Coaxial
Fiber Cable has a 10 meter cable that can be cut to length.
Specifications:
| Sensing Mode | Diffuse Reflective |
| Sensor Body Type | Threaded w/sleeve |
| Beam Sensing Direction | Axial Sensing |
| Features | |
| Mounting Size Dimension | M6 |
| Mounting Size Length | 15 mm |
| D3RF Max Sensing Distance | 1200 mm |
| Min. Detectable Object (D3RF) | Ø 0.015 mm |
| Lens Compatible | |
| Coaxial Fiber | Coaxial type |
| Sleeve | Non-bendable |
| Sleeve Diameter | Ø 2.5 |
| Sleeve Length | 5 mm |
| Sleeve Bend Radius | |
| Temperature | -40 to 70° C |
| Fiber Core | Coaxial |
| Fiber Cable Bend Radius | R25 |
| Fiber OD (mm) | 2.2 mm |
| Fiber Cable Length | 10 meters |
| Cuttable / Non-Cuttable | Cuttable |
| Includes | Fiber Cutter |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
