OPTEX NF-DE02 DIFFUSE R1 FIBER RECTANGULAR HEAD/SIDE SENSE
Starting At: $171.50
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF-DE02
IMS Product Code: 1781032
Packaging: Sold Individually
Description:

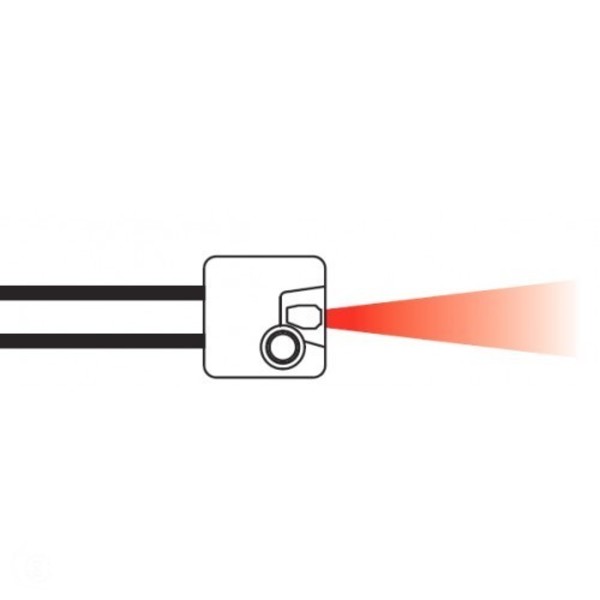

Optex NF-DE02 diffuse R1 Fiber Rectangular Head/Side Sense
Head ~ Side Sense
Specifications:
| Sensing Mode | Diffuse Reflective |
| Beam Sensing Direction | Head-On/Side-On Sensing |
| D3RF Max Sensing Distance | 160 mm |
| Sensor Dimensions | 10 x 10 x 2 mm |
| Features | Single Hole Screw Mounting |
| Min. Detectable Object (D3RF) | Ø 0.16 mm |
| Temperature | -40 to 60° C |
| Fiber Cable Bend Radius | R1 |
| Fiber OD (mm) | 1.0 mm |
| Fiber Cable Length | 1 meter |
| Cuttable / Non-Cuttable | Cuttable |
| Includes | Fiber Cutter and Tips |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
