OPTEX NF-DH07 M4 DIFFUSE COAXIAL R25 HI-TEMP 1M FIBER
Starting At: $490.00
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF-DH07
IMS Product Code: 1781050
Packaging: Sold Individually
Description:

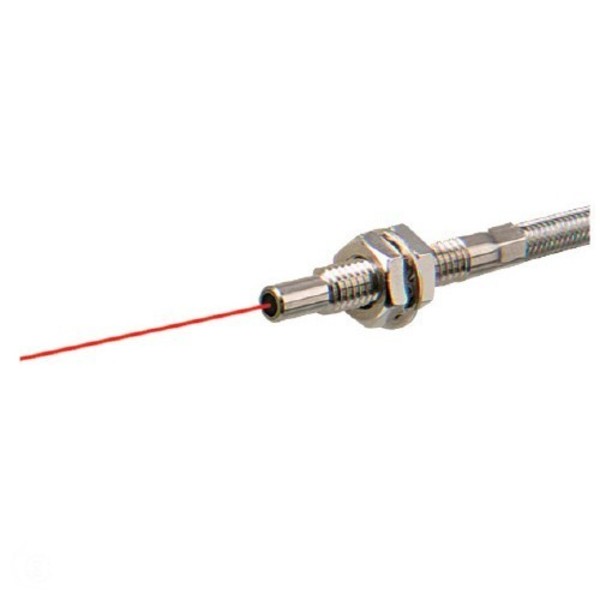

Optex NF-DH07 M4 Diffuse Coaxial R25 Hi-Temp 1m Fiber
Specifications:
| Sensing Mode | Diffuse Reflective |
| Sensor Body Type | Threaded w/sleeve |
| Beam Sensing Direction | Axial Sensing |
| Features | SUS Jacket |
| Mounting Size Dimension | M4 |
| Mounting Size Length | 15 mm |
| D3RF Max Sensing Distance | 100 mm |
| Min. Detectable Object (D3RF) | Ø 0.02 mm |
| Lens Compatible | |
| Coaxial Fiber | Coaxial type |
| Sleeve | |
| Sleeve Diameter | |
| Sleeve Length | |
| Sleeve Bend Radius | |
| Temperature | -60 to 200° C |
| Fiber Core | Coaxial |
| Fiber Cable Bend Radius | R25 |
| Fiber OD (mm) | |
| Fiber Cable Length | 1 meter |
| Cuttable / Non-Cuttable | Non-Cuttable Fiber-Fixed Tips |
| Includes |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
