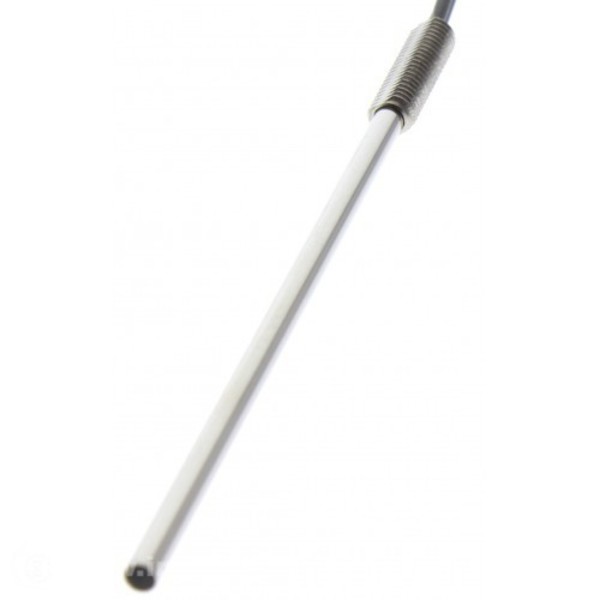

OPTEX NF-DK63Z M6X15 DIFFUSE R2 W/ Ø2.5MM X 65MM SLEEVE
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF-DK63Z
IMS Product Code: 1781065
Packaging: Sold Individually
Description:
Optex NF-DK63Z M6x15 Diffuse R2 w/ Ø2.5mm X 65mm Sleeve
Specifications:
| Sensing Mode | Diffuse Reflective |
| Sensor Body Type | Threaded w/sleeve |
| Beam Sensing Direction | Axial Sensing |
| Features | |
| Mounting Size Dimension | M6 |
| Mounting Size Length | 15 mm |
| D3RF Max Sensing Distance | 500 mm |
| Min. Detectable Object (D3RF) | Ø 0.015 mm |
| Lens Compatible | |
| Coaxial Fiber | |
| Sleeve | Bendable |
| Sleeve Diameter | Ø 2.5 mm |
| Sleeve Length | 65 mm |
| Sleeve Bend Radius | R20 |
| Temperature | -40 to 70° C |
| Fiber Core | Multicore |
| Fiber Cable Bend Radius | R2 |
| Fiber OD (mm) | 1.3 mm |
| Fiber Cable Length | 2 meters |
| Cuttable / Non-Cuttable | Cuttable |
| Includes | Fiber Cutter and Tips |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
