OPTEX NF-DP01 1.5 CYLINDRICAL DIFFUSE W/ 0.5X3 SLEEVE 1M FIBER
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF-DP01
IMS Product Code: 1781078
Packaging: Sold Individually
Description:

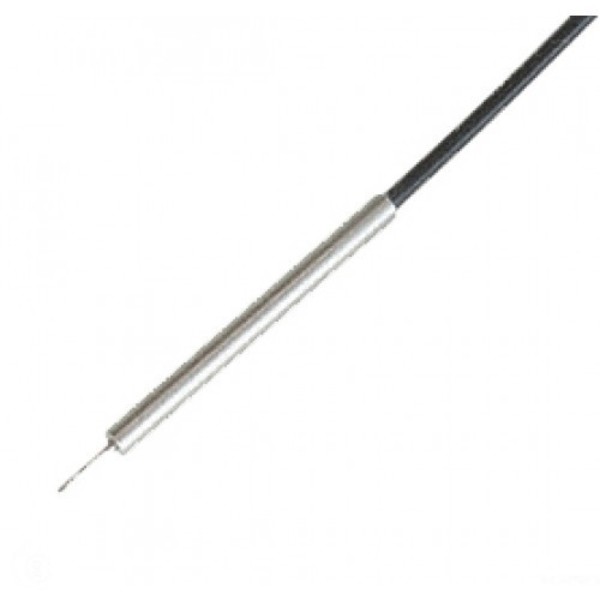

Optex NF-DP01 Ø1.5 Cylindrical Diffuse w/ Ø0.5x3 Sleeve 1m Fiber
Specifications:
| Sensing Mode | Diffuse Reflective |
| Sensor Body Type | Smooth w/ sleeve |
| Beam Sensing Direction | Axial Sensing |
| Features | Focused beam type for small object detection |
| Mounting Size Dimension | Ø 1.5 mm |
| Mounting Size Length | 15 mm |
| D3RF Max Sensing Distance | 28 mm |
| Min. Detectable Object (D3RF) | Ø 0.02 mm |
| Lens Compatible | |
| Coaxial Fiber | |
| Sleeve | Non-bendable |
| Sleeve Diameter | Ø 0.5 mm |
| Sleeve Length | 3.0 mm |
| Sleeve Bend Radius | |
| Temperature | -40 to 70° C |
| Fiber Core | 0.125 x 4 |
| Fiber Cable Bend Radius | R10 |
| Fiber OD (mm) | 1.0 mm |
| Fiber Cable Length | 1 meter |
| Cuttable / Non-Cuttable | Non-Cuttable Fiber-Fixed Tips |
| Includes |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
