OPTEX NF-DR06 M4 DIFFUSE R4 FIBER 2M CUTTABLE
Starting At: $127.40
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF-DR06
IMS Product Code: 1781092
Packaging: Sold Individually
Description:

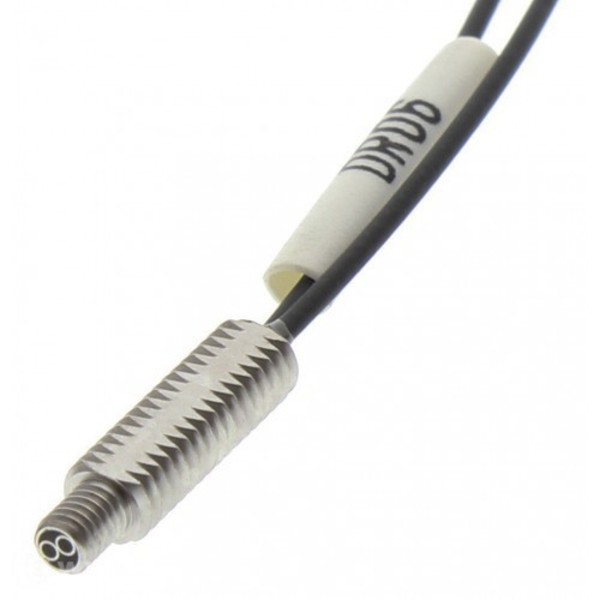

Optex NF-DR06 M4 Diffuse R4 Fiber 2m Cuttable
Ability to withstand over 800,000 flexes. Great for high flex applications.
Specifications:
| Sensing Mode | Diffuse Reflective |
| Sensor Body Type | Threaded |
| Beam Sensing Direction | Axial Sensing |
| Features | |
| Mounting Size Dimension | M4 |
| Mounting Size Length | 12 mm |
| D3RF Max Sensing Distance | 300 mm |
| Min. Detectable Object (D3RF) | Ø 0.015 mm |
| Lens Compatible | |
| Coaxial Fiber | |
| Sleeve | |
| Sleeve Diameter | |
| Sleeve Length | |
| Sleeve Bend Radius | |
| Temperature | -40 to 70° C |
| Fiber Core | Multicore |
| Fiber Cable Bend Radius | R4 |
| Fiber OD (mm) | 1.0 mm |
| Fiber Cable Length | 2 meters |
| Cuttable / Non-Cuttable | Cuttable |
| Includes | Fiber Cutter and Tips |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
