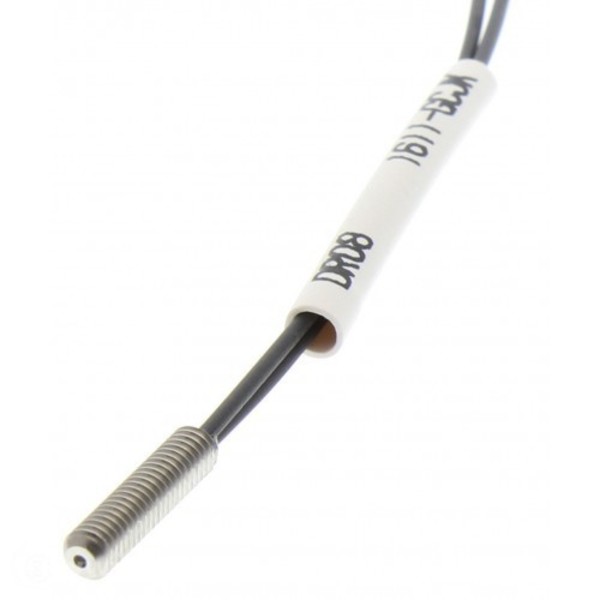

OPTEX NF-DR08-5 M3 DIFFUSE R4 FIBER 5M CUTTABLE
Starting At: $98.00
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF-DR08-5
IMS Product Code: 1781103
Packaging: Sold Individually
Description:
Optex NF-DR08-5 M3 Diffuse R4 Fiber 5m Cuttable
5 meter cable version
Specifications:
| Sensing Mode | Diffuse Reflective |
| Sensor Body Type | Threaded |
| Beam Sensing Direction | Axial Sensing |
| Features | |
| Mounting Size Dimension | M3 |
| Mounting Size Length | 12 mm |
| D3RF Max Sensing Distance | 88 mm |
| Min. Detectable Object (D3RF) | Ø 0.02 mm |
| Lens Compatible | |
| Coaxial Fiber | |
| Sleeve | |
| Sleeve Diameter | |
| Sleeve Length | |
| Sleeve Bend Radius | |
| Temperature | -40 to 70° C |
| Fiber Core | Multicore |
| Fiber Cable Bend Radius | R4 |
| Fiber OD (mm) | 1.0 mm |
| Fiber Cable Length | 2 meters |
| Cuttable / Non-Cuttable | Cuttable |
| Includes | Fiber Cutter and Tips |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
