OPTEX NF-DR08 M3 DIFFUSE R4 FIBER 2M CUTTABLE
Starting At: $78.40
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF-DR08
IMS Product Code: 1781096
Packaging: Sold Individually
Description:

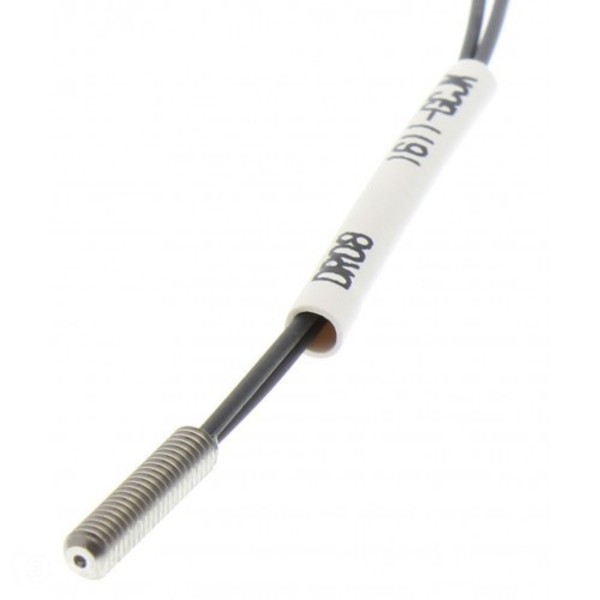

Optex NF-DR08 M3 Diffuse R4 Fiber 2m Cuttable
Withstands over 800,000 flexes.
Specicifcations:
Sensing Mode | Diffuse Reflective |
Sensor Body Type | Threaded |
Beam Sensing Direction | Axial Sensing |
Features | |
Mounting Size Dimension | M3 |
Mounting Size Length | 12 mm |
D3RF Max Sensing Distance | 88 mm |
Min. Detectable Object (D3RF) | Ø 0.02 mm |
Lens Compatible | |
Coaxial Fiber | |
Sleeve | |
Sleeve Diameter | |
Sleeve Length | |
Sleeve Bend Radius | |
Temperature | -40 to 70° C |
Fiber Core | Multicore |
Fiber Cable Bend Radius | R4 |
Fiber OD (mm) | 1.0 mm |
Fiber Cable Length | 2 meters |
Cuttable / Non-Cuttable | Cuttable |
Includes | Fiber Cutter and Tips |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
