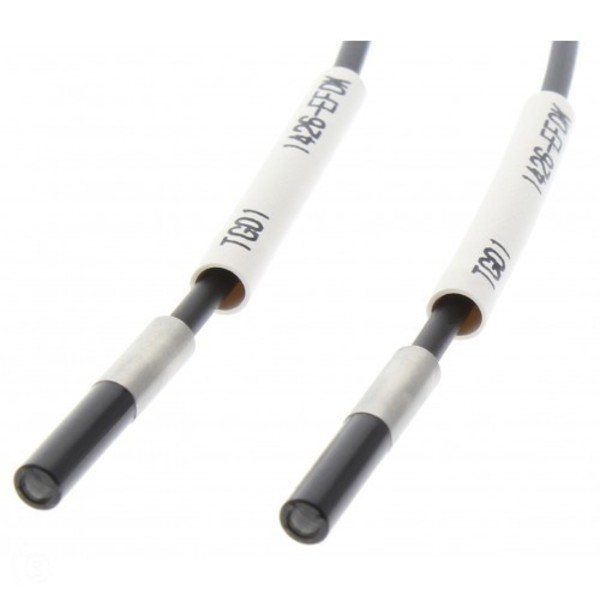

OPTEX NF-TG01 TBEAM MAPPING FIBER HEAD-ON 2° APERTURE
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF-TG01
IMS Product Code: 1781223
Packaging: Sold Individually
Description:
Optex NF-TG01 Tbeam Mapping Fiber Head-on 2° Aperture
Specifications:
| Sensing Mode | Thrubeam |
| Sensor Body Type | Smooth |
| Beam Sensing Direction | Axial Sensing |
| Features | Designed for wafer mapping featuring 2° optical aperture |
| Mounting Size Dimension | Ø 3.7 mm |
| Mounting Size Length | 25 mm |
| D3RF Max Sensing Distance | 3600 mm |
| Min. Detectable Object (D3RF) | Ø 0.06 mm |
| Lens Compatible | |
| Coaxial Fiber | |
| Sleeve | |
| Sleeve Diameter | |
| Sleeve Length | |
| Sleeve Bend Radius | |
| Temperature | -40 to 70° C |
| Fiber Core | |
| Fiber Cable Bend Radius | R25 |
| Fiber OD (mm) | 2.2 mm |
| Fiber Cable Length | 2 meters |
| Cuttable / Non-Cuttable | Cuttable |
| Includes | Fiber Cutter |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
