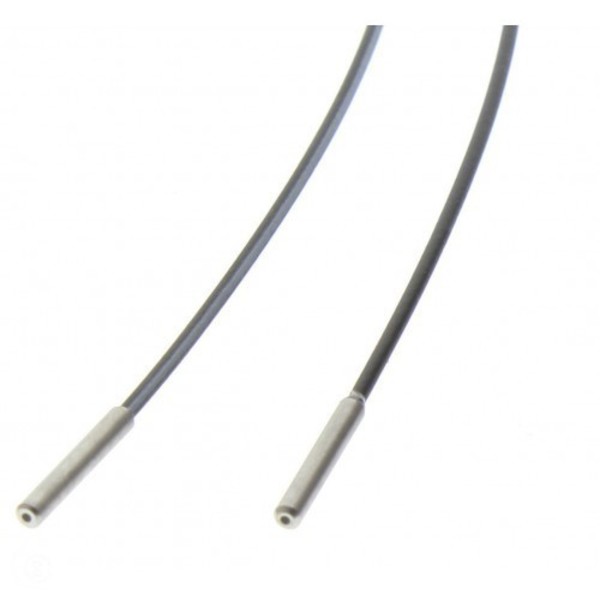

OPTEX NF-TM03 Ø1.5 CYLINDRICAL THRUBEAM R15 FIBER 2M CUTTABLE
Starting At: $49.00
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF-TM03
IMS Product Code: 1781276
Packaging: Sold Individually
Description:
Optex NF-TM03 Ø1.5 Cylindrical Thrubeam R15 Fiber 2m Cuttable
Maximum sensing distance of 900mm when using D3RF series fiber amplifier.
Specifications:
| Sensing Mode | Thrubeam |
| Sensor Body Type | Smooth |
| Beam Sensing Direction | Axial Sensing |
| Features | Focused beam type for small object detection |
| Mounting Size Dimension | Ø 1.5 mm |
| Mounting Size Length | 10 mm |
| D3RF Max Sensing Distance | 900 mm |
| Min. Detectable Object (D3RF) | Ø 0.1 mm |
| Lens Compatible | |
| Coaxial Fiber | |
| Sleeve | |
| Sleeve Diameter | |
| Sleeve Length | |
| Sleeve Bend Radius | |
| Temperature | -40 to 70° C |
| Fiber Core | 0.5 |
| Fiber Cable Bend Radius | R15 |
| Fiber OD (mm) | 1.0 mm |
| Fiber Cable Length | 2 meters |
| Cuttable / Non-Cuttable | Cuttable |
| Includes | Fiber Cutter and Tips |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
