OPTEX NF-TR04 Ø1 CYLINDRICAL TBEAM R4 FIBER 500MM
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF-TR04
IMS Product Code: 1781289
Packaging: Sold Individually
Description:
Optex NF-TR04 Ø1 Cylindrical Tbeam R4 Fiber 500mm
Can withstand more than 800,000 flexes
Specifications:

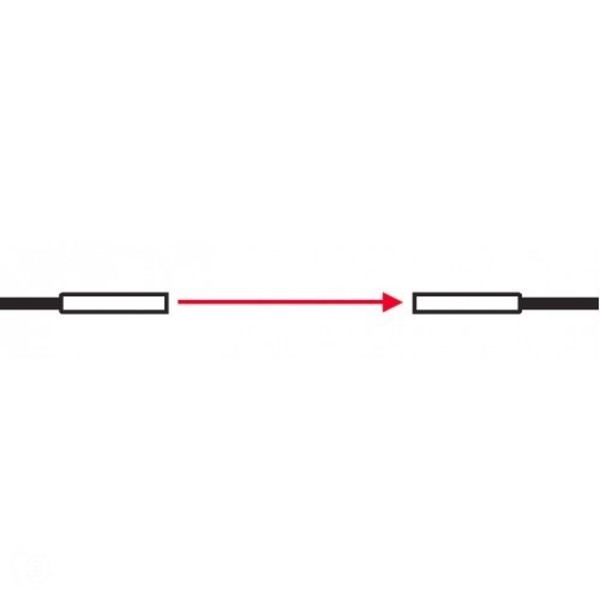

| Sensing Mode | Thrubeam |
| Sensor Body Type | Smooth |
| Beam Sensing Direction | Axial Sensing |
| Features | Focused beam type for small object detection |
| Mounting Size Dimension | Ø 1 mm |
| Mounting Size Length | 6 mm |
| D3RF Max Sensing Distance | 54 mm |
| Min. Detectable Object (D3RF) | Ø 0.02 mm |
| Lens Compatible | |
| Coaxial Fiber | |
| Sleeve | |
| Sleeve Diameter | |
| Sleeve Length | |
| Sleeve Bend Radius | |
| Temperature | -40 to 60° C |
| Fiber Core | 0.265 |
| Fiber Cable Bend Radius | R4 |
| Fiber OD (mm) | 0.7 mm |
| Fiber Cable Length | .5 meters |
| Cuttable / Non-Cuttable | Non-Cuttable Fiber-Fixed Tips |
| Includes |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
