OPTEX NF-TS22V Ø4 CYLINDRICAL THRUBEAM R1 CUTTABLE FIBER
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF-TS22V
IMS Product Code: 1781326
Packaging: Sold Individually
Description:

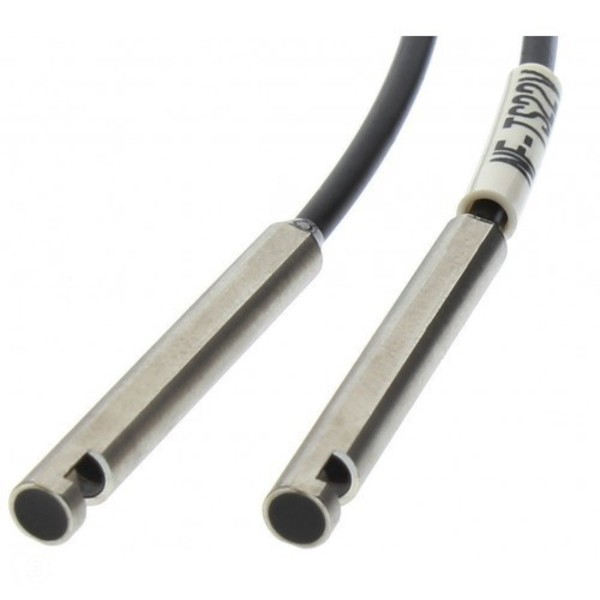

Optex NF-TS22V Ø4 Cylindrical Thrubeam R1 Cuttable Fiber
With only 1mm bending radius this side view thrubeam fiber is perfect in applications requiring a very tight bend in the cable.
Specifications:
| Sensing Mode | Thrubeam |
| Sensor Body Type | Smooth |
| Beam Sensing Direction | Sideview Sensing |
| Features | Designed for wafer mapping featuring 3° optical aperture |
| Mounting Size Dimension | 4.0 x 3.6 mm |
| Mounting Size Length | 30 mm |
| D3RF Max Sensing Distance | 3500 mm |
| Min. Detectable Object (D3RF) | Ø 0.06 mm |
| Lens Compatible | |
| Coaxial Fiber | |
| Sleeve | |
| Sleeve Diameter | |
| Sleeve Length | |
| Sleeve Bend Radius | |
| Temperature | -40 to 70° C |
| Fiber Core | |
| Fiber Cable Bend Radius | R1 |
| Fiber OD (mm) | 2.2 mm |
| Fiber Cable Length | 2 meters |
| Cuttable / Non-Cuttable | Cuttable |
| Includes | Fiber Cutter |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
