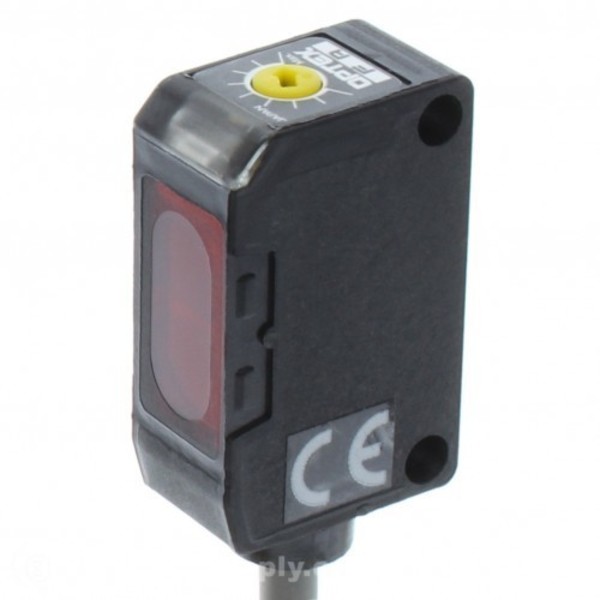

OPTEX SD-20N DIFFUSE 200 MM NPN 2M CABLE
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: SD-20N
IMS Product Code: 1781448
Packaging: Sold Individually
Description:
Optex SD-20N Diffuse 200 mm NPN 2M cable
Compact photoelectric sensor in a 17X10X20 mm enclosure. Perfect for many applications with tight space requirements.
Specifications:
Sensing Mode | Diffuse Reflective |
Sensing Distance | 200mm |
Min Detectable Object/Hysteresis | 20% |
Light Source | Red LED |
Supply Voltage | 10 to 30 VDC |
Current Consumption | 20mA |
Response Time | 0.5ms |
Sensitivity Adjustment | 1-turn potentiometer |
Output | NPN |
Output Operation Mode | Light-On / Dark-On switch selectable |
Timer | |
Enclosure | PBT with glass (case), PC lens |
Protection | IP67 |
Shock Rating | 100G |
Temperature | -25 to +55° C |
Connection | 2 meter cable |
Includes | BEF-W150-B brackets & screws |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
