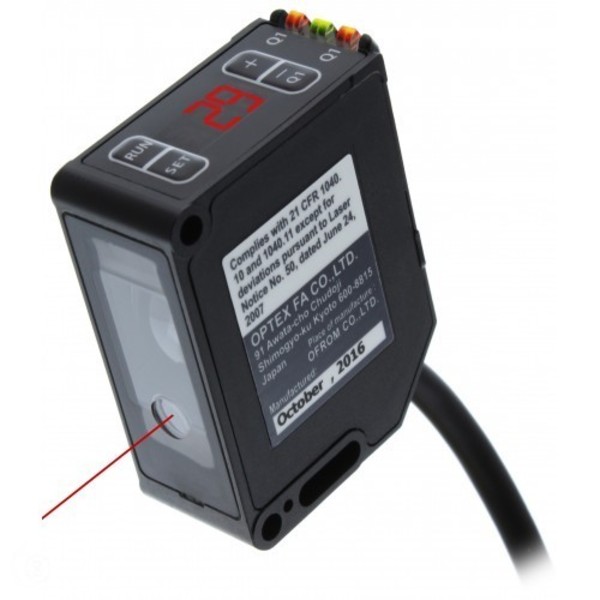

OPTEX TOF-DL250AM12 TIME OF FLIGHT LASER 2.5M ANALOG + 1 DIGITAL

MSRP: $505.00
Starting At: $494.90

Quick Overview

Manufactured By: OPTEX
Manufacturer Part Number: TOF-DL250AM12
IMS Product Code: 1781506
Packaging: Sold Individually

Description:

Optex TOF-DL250AM12 Time Of Flight Laser 2.5M Analog + 1 Digital Output M12 5pin QD

The TOF-DL time of flight laser is ultra-compact and capable of accurately measuring at distances up to 2.5 Meters.

The TOF method measures the time it takes a pulse-emitted laser to hit a target and return, and the measurement is then converted into distance. With strong resistance to influences from the target’s surface conditions, this method is capable of producing stable detection.

The TOF-DL Laser is equipped with a 3 digit, easy to see digital display. The display allows users to check the measuring distance. Set-up is also made easy with the push-button teach functions

Wiring Diagram. The sensor can be set-up for 4-20ma or 0-10v output. The digital output can be set for NPN or PNP

Specifications:

Sensor TypeUltra-Compact Digital Time Of Flight Laser Distance Measurement Sensor
Measurement Range0.25 to 2.5 meters
Light SourceRed Laser Diode 650nm
Light Source Output390µW or less
Laser ClassClass I (IEC 60825-1) 21 CFR 1040.10 and 1040.11 (less notice No. 50)
Spot SizeØ 10mm / 2.5M
Sampling Period200µs
Response Time0.5ms or less
Hysteresis15% or less
Sensitivity SettingTeaching w/manual adjustment
LED IndicatorsOutput Indicator: (Orange), Stability Indicator / Laser off Indicator: (Green) / (Red) / (Off)
Digital Display7-segment, 3-digit LED Display, display units is in cm
External InputProgrammable as: Teaching / Laser OFF
Outputs1 Digital / 1 Analog
Digital Output TypeSettable as NPN or PNP
Digital Output ModeSettable as Light-on or Dark-on
Digital Output Setting1 each: settable as control or stability output
Analog OutputSettable as: 4-20mA or 0-10VDC
Supply Voltage12 to 30 VDC (10% ripple (p-p)
Current Consumption60mA or less (not including digital output loads)
RoHSDirective (2011/65/EU
Temperature-10 to +50° C
ProtectionIP67
MaterialHousing: PC, Front cover PMMA
Weight.12 lbs
Connection TypeM12 5P pigtail
IncludesBEF-WK-190 mounting bracket/screws
