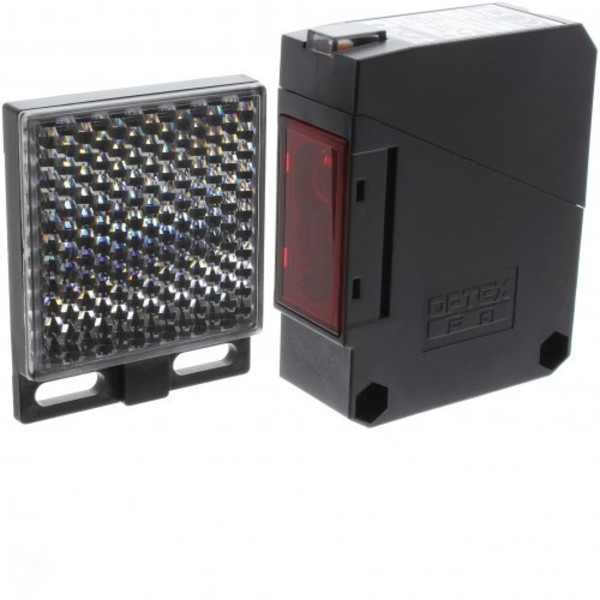

OPTEX VR-1000T AC/DC POLARIZED RETRO-REFLECTIVE W/TIMER 10M SPDT
Starting At: $132.30
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: VR-1000T
IMS Product Code: 1781641
Packaging: Sold Individually
Description:
Optex VR-1000T AC/DC Polarized Retro-reflective W/Timer 10M SPDT relay Screw term, 1/2" KO
Ideal for dusty and dirty environments
Simple screw terminal wiring layout.This model has includes a timer.
Specifications:
| Sensing Mode / Type | Polarizded Retro-reflective |
| Sensing Distance | 10 meter |
| Light Source | Red LED |
| Supply Voltage | 12 to 240VDC / 24 to 240VAC |
| Minimum Detectable Object | Ø50mm |
| Current Consumption | 5VA |
| Response Time | 20ms |
| Sensitivity Adjustment | 1-Turn Potentiometer |
| Output | SPDT Relay 0.1 Amp |
| Model Type | |
| Output Operation Mode | Light-on |
| Protection | IP67 |
| Temperature | -25° to +55° C |
| Connection | Screw Terminal Type w/Lift-off Cover. Two 1/2" NPT Entry Ports |
| Includes | Mounting Bracket/Hardware + V-61 Reflector |
| Timer Option | Individual 1-Turn Potentiometer Adjustment for both On-delay and Off-delay timing. 0.1 to 10 seconds |
| Shock Rating | 50G |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Availability: 12 In Stock
Lead Time: 3 to 5 Days
