OPW 66SB-7575 3/4 SWIVEL BREAKAWAY
Quick Overview
Manufactured By: OPW ENGINEERED SYSTEMS
Manufacturer Part Number: 66SB-7575
IMS Product Code: 2139925

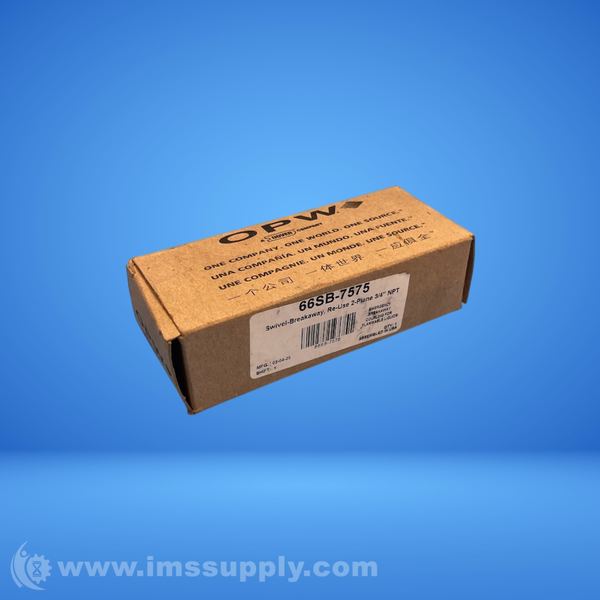

Packaging: Sold Individually
Description:

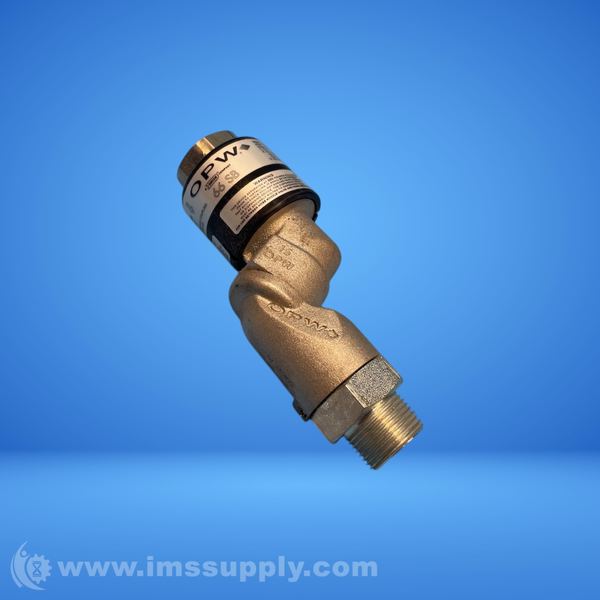

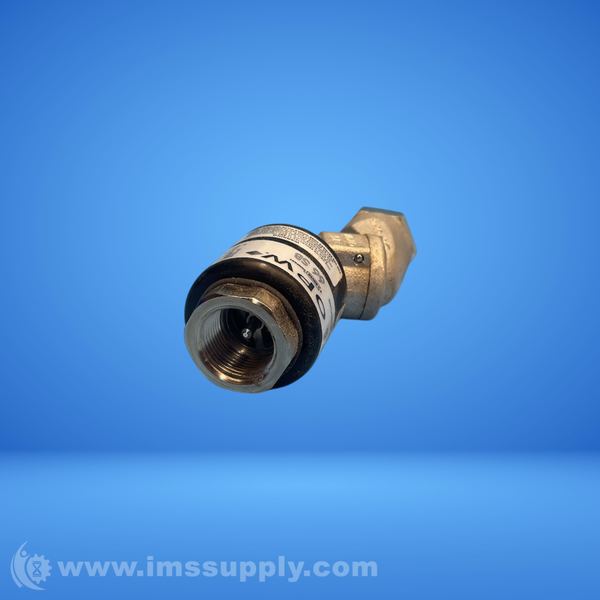

OPW 66SB-7575 3/4 Swivel Breakaway
The OPW 66SB-7575 is a 3/4 inch swivel breakaway designed for easy installation at the nozzle inlet. It features a compact, lightweight design with 360-degree swivel rotation at both the male end and middle joint, and a simple, easily reconnectable breakaway on the opposite end.
Specifications
- Size: 3/4 x 3/4 inch (NPT)
- Pull Force: 350 lbs
- Reconnection Force: 15 lbs
- Max Pressure: 50 PSI
- Material: Aluminum body, Nylon/HDPE sleeve, Viton seals, Stainless steel main spring, Aluminum poppet
- Weight: 1 lb
- Dimension A: 2-1/2 inches
- Dimension B: 5-29/32 inches
- Inlet: 3/4 Female NPT
- Outlet: 3/4 Male NPT
- Rotation: 360 rotations at middle joint and male end
- O-ring Configuration: Double O-rings in middle joint and male end
- Reusability: Reusable, meets UL and ULC listing after recoupling
