ORIENTAL MOTOR 3RK15GN-AM AC MAGNETIC BRAKE MOTOR
Quick Overview
Manufactured By: ORIENTAL MOTOR
Manufacturer Part Number: 3RK15GN-AM
IMS Product Code: 2146863
Packaging: Sold Individually
Description:

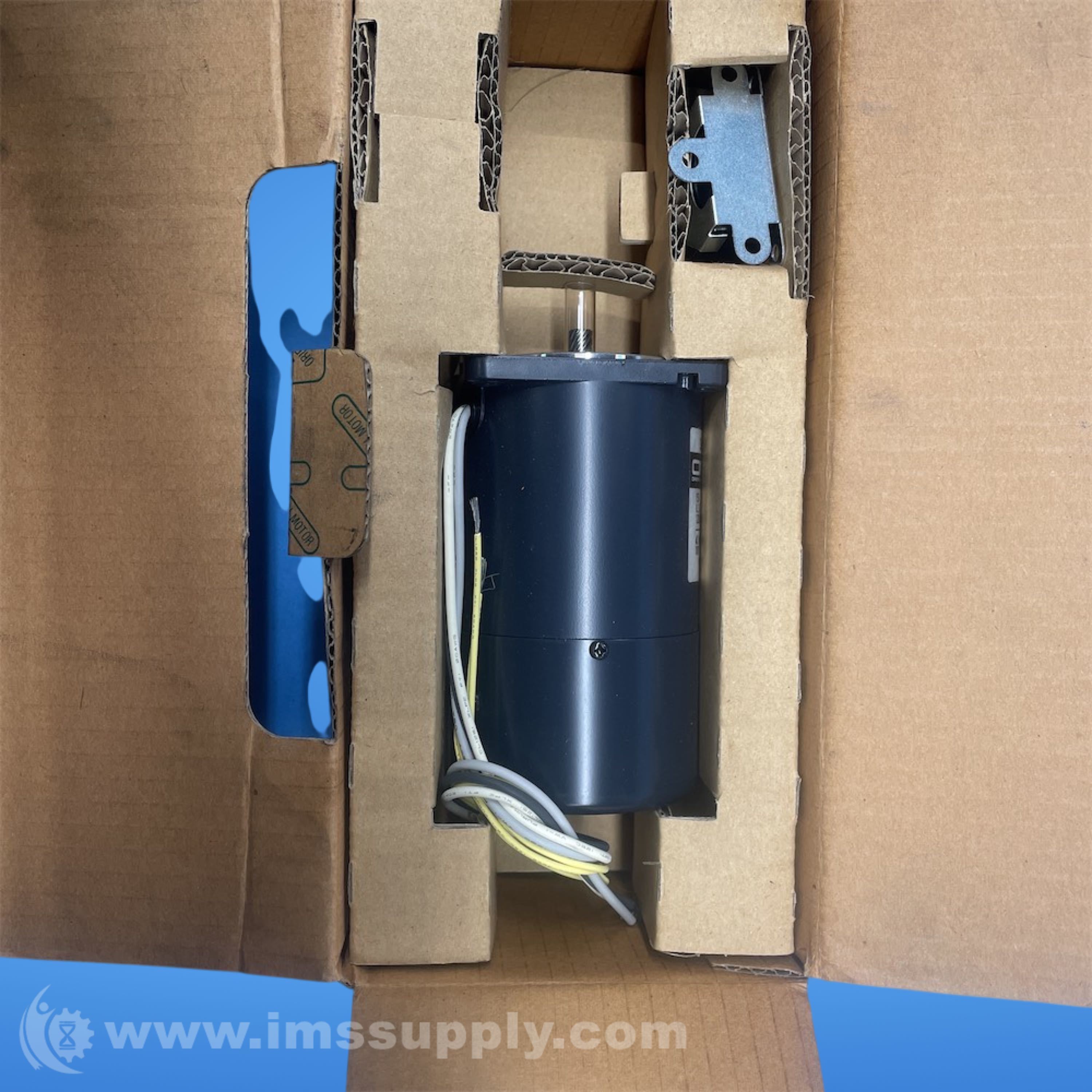

Oriental Motor 3RK15GN-AM AC Magnetic Brake Motor
AC magnetic brake motor with reversible function, 100V, 15W output power, 1200/1500 RPM, made in Japan.
Specifications
- Brand: Oriental Motor
- Current Type: AC
- Special Motor Construction: Brake Motor
- Type: Gearmotor
- Voltage: 100V
- R/Min: 1200-1500
- Hz: 50/60Hz
- RPM: 1200/1500 r/min
- Amperage: 0.5A
- Watts: 15W
- Full Load Amps: 0.5A
- Country/Region of Manufacture: Japan
- Frame Size: 2.76inch (70mm)
- Overall length: 180mm
- Weight: 1640g
- Output Power: 15W
- Motor RPM: 1500 @ 60Hz
- Time Rating: 30mins
- Reversible: Yes
- Brake: 100VAC to release 0.05A
- Reduction Ratio: 1:3.6
- Output RPM: 416.6
- Output Shaft: d10 x L29 mm
