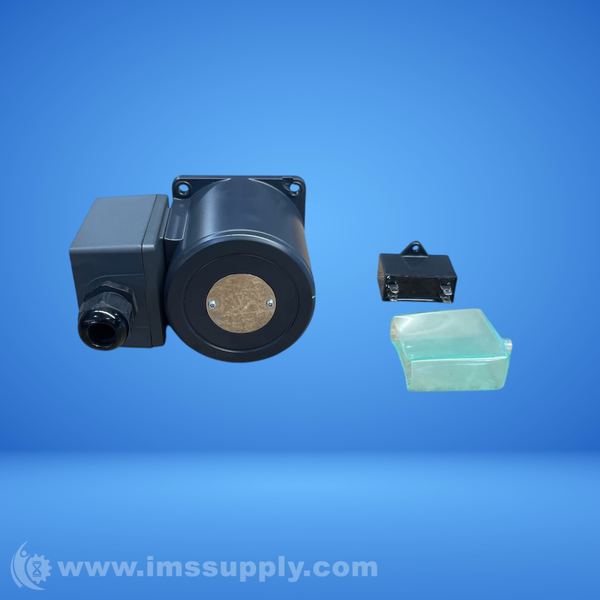

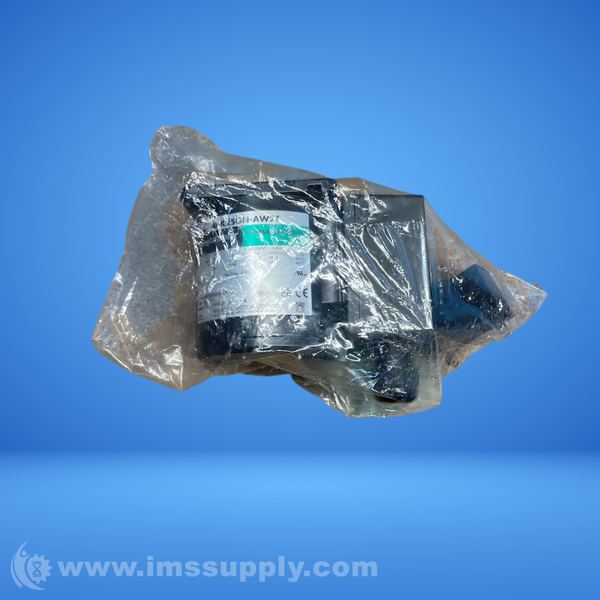

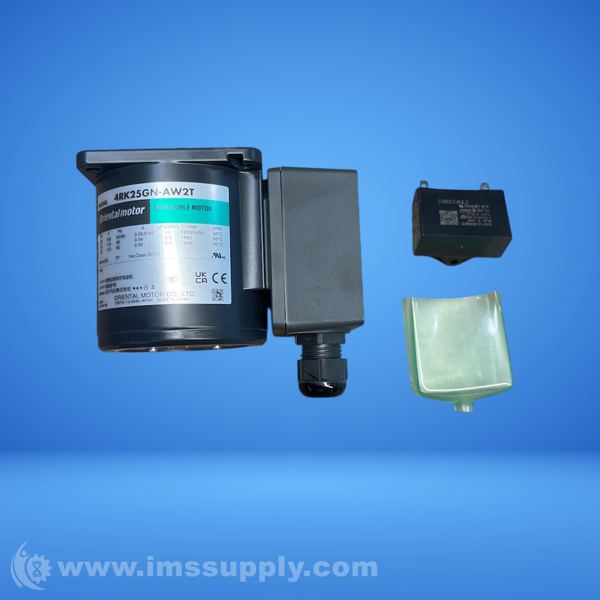

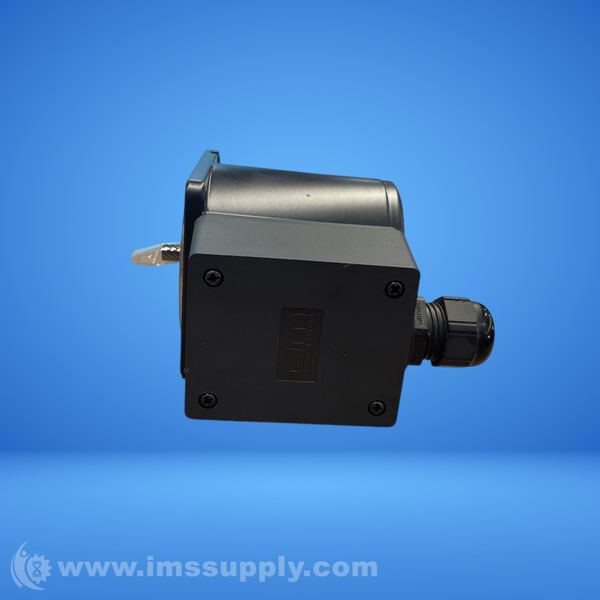

ORIENTAL MOTOR 4RK25GN-AW2T REVERSIBLE MOTOR
Quick Overview
Manufactured By: ORIENTAL MOTOR
Manufacturer Part Number: 4RK25GN-AW2T
IMS Product Code: 2174881
Packaging: Sold Individually
Description:
Oriental Motor 4RK25GN-AW2T Reversible Motor
Reversible motor with gearhead for applications requiring frequent direction reversal.
Specifications
- Output Power: 25 W (1/30 HP)
- Voltage: Single-Phase 110/115 VAC
- Frequency: 50/60 Hz
- Current: 0.56 A / 0.59 A / 0.69 A
- Rated Speed: 100 rpm / 1200 rpm / 1450 rpm
- Rated Torque: 15.9 lb-in (1.8 N�m)
- Gear Ratio: 18:1
- Shaft Diameter: 10 mm
- Insulation Class: Class B (130�C)
- Ambient Temperature Range: -10�C to 40�C / 0�C to 40�C
- Degree of Protection: IP20 / IP40
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 58 minutes.
