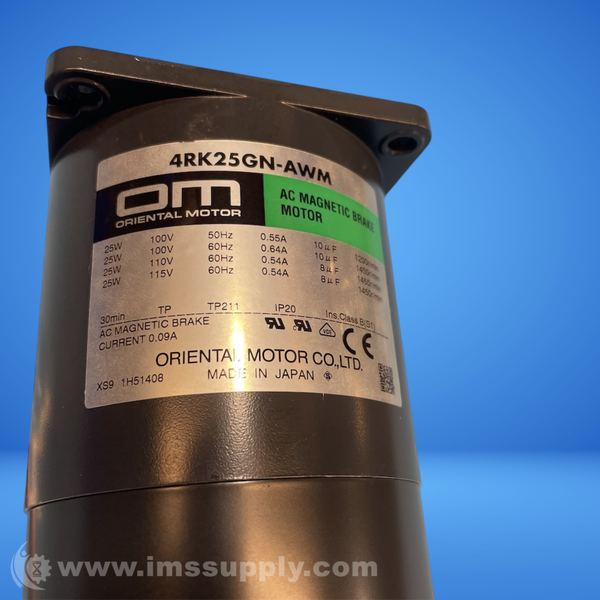

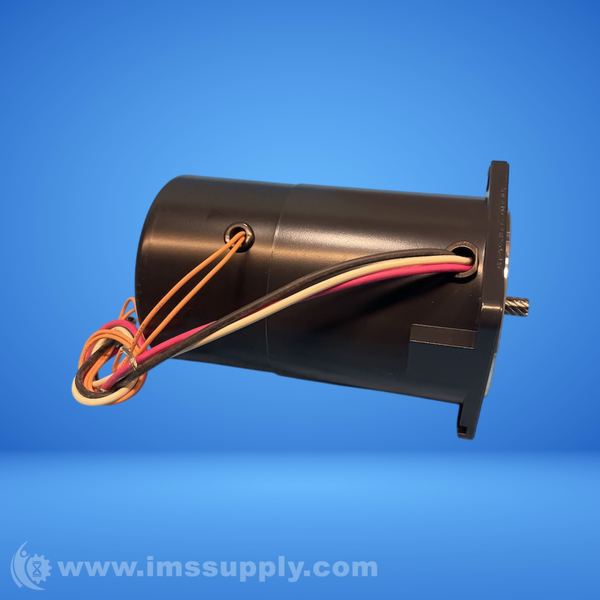

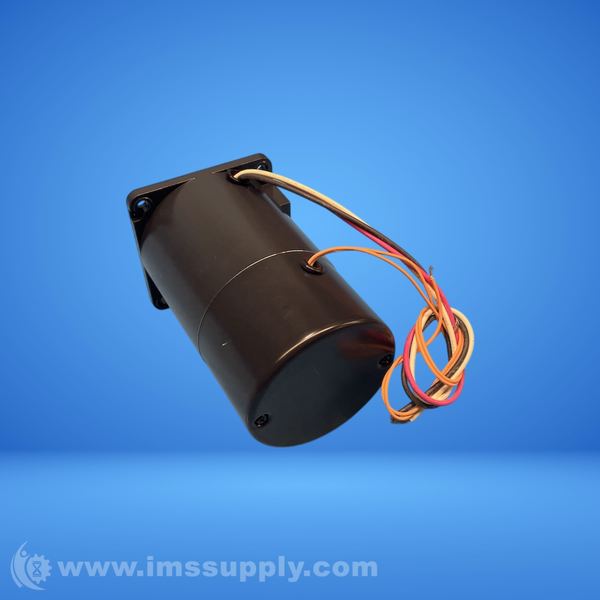

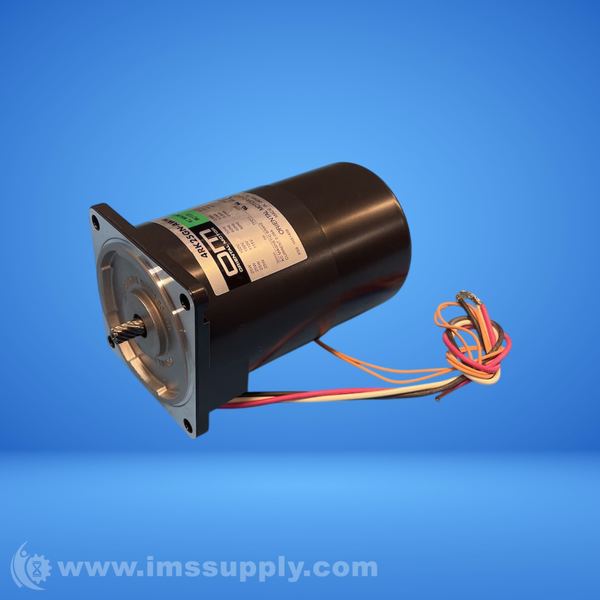

ORIENTAL MOTOR 4RK25GN-AWM AC MAGNETIC BRAKE MOTOR
Quick Overview
Manufactured By: ORIENTAL MOTOR
Manufacturer Part Number: 4RK25GN-AWM
IMS Product Code: 2124133
Packaging: Sold Individually
Description:
Oriental Motor 4RK25GN-AWM AC Magnetic Brake Motor
25 W (1/30 HP) World K Series AC Motors Electromagnetic Brake - Reversible Pinion Shaft Motor (Single-Phase 110/115 VAC)
Specifications
- Special Motor Construction: Brake Motor
- Current Type: AC
- AC Motor Type: Induction/Asynchronous
- Nominal Rated Input Voltage: 110 V, 115 V
- AC Phase: Single Phase
- Current: 0.54 A
- Voltage (VAC): Single-Phase 110/115 VAC
- Frequency (Hz): 60
- Shaft/Gear Type: Parallel Shaft Gearhead
- Gear Ratio (X:1): 75 :1
- Output Shaft Diameter: 10 mm
- Type: Lead Wire
- Electromagnetic Brake: Equipped
- Rated Torque: 70 lb-in 8 N·m
- Rated Speed (rpm): 24
- Permissible Load Inertia: 4250 oz-in²775 x 10-4 kg·m²
- Permissible Overhung Load: 0.39 in. from Shaft End = 45 lb0.79 in. from Shaft End = 67 lb10 mm from Shaft End = 200 N20 mm from Shaft End = 300 N
- Permissible Thrust Load: 11.2 lb50 N
- RoHS Compliant: Yes
- Degree of Protection: IP20
- Voltage (Brake): Single-Phase 100/115 VAC
- Current (Brake): 0.09 A
- Static Friction Torque: 14.2 oz-in0.1 N·m
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
