ORIENTAL MOTOR 5IK60RA-CW SPEED CONTROL MOTOR
Quick Overview
Manufactured By: ORIENTAL MOTOR
Manufacturer Part Number: 5IK60RA-CW
IMS Product Code: 1940963
Packaging: Sold Individually
Description:

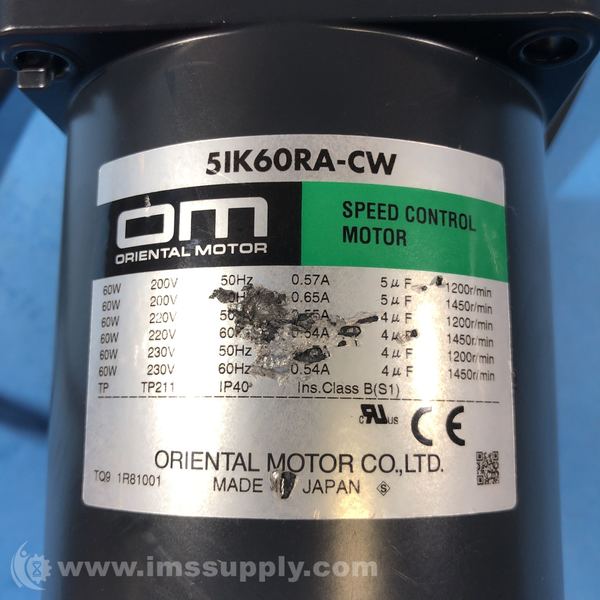

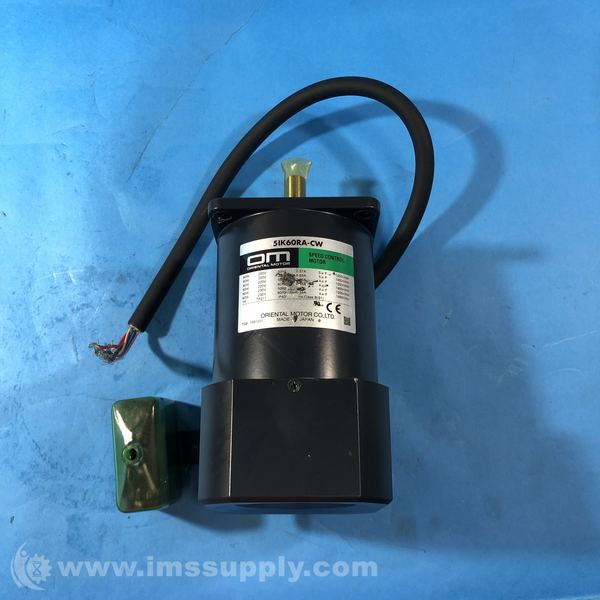

Oriental Motor 5IK60RA-CW Speed Control Motor
A 60W single-phase AC speed control motor with pinion shaft and built-in thermal protector.
Specifications
- Motor Type: Speed Control
- Output Power: 60 W (1/12 HP)
- Voltage (VAC): Single-Phase 220/230 VAC
- Frequency (Hz): 50/60
- Rated Speed (rpm): 1200 [50 Hz] 1450 [60 Hz]
- Rated Torque (lb-in): 4.31 [50 Hz] 3.56 [60 Hz]
- Shaft/Gear Type: Pinion Shaft (Gearhead required - sold separately)
- Insulation Class: Class B (130 degrees C)
- Overheat Protection: Built-in thermal protector (Automatic return type)
- Degree of Protection: IP20
- RoHS Compliant: Yes
- Safety Standards: UL CSA EN CE
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
