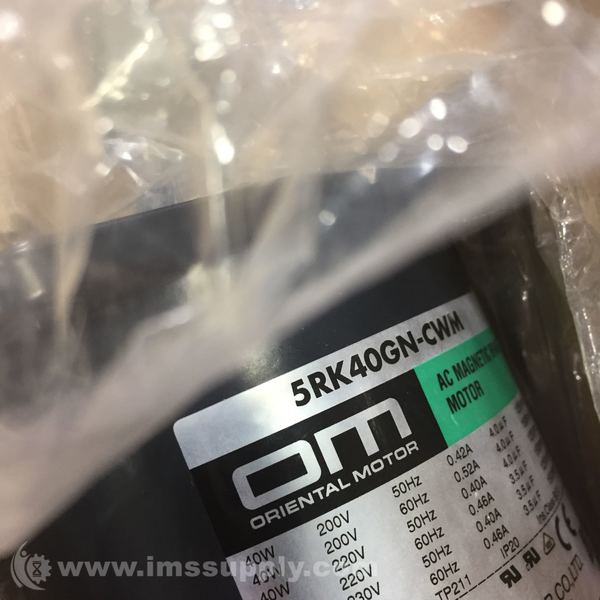

ORIENTAL MOTOR 5RK40GN-CWME ELECTROMAGNETIC BRAKE MOTOR
Quick Overview
Manufactured By: ORIENTAL MOTOR
Manufacturer Part Number: 5RK40GN-CWME
IMS Product Code: 1896206
Packaging: Sold Individually
Description:
Oriental Motor 5RK40GN-CWME Electromagnetic Brake Motor
Electromagnetic Brake - Reversible Motor with 40 W output power, single-phase 220/230 VAC voltage, and pinion shaft gear type.
Specifications
- Motor Type: Electromagnetic Brake - Reversible
- Motor Frame Size: 3.54 in. sq.
- Output Power: 40 W (1/19 HP)
- Voltage (VAC): Single-Phase 220/230 VAC
- Frequency (Hz): 50/60
- Shaft/Gear Type: Pinion Shaft (Gearhead required - sold separately)
- Type: Lead Wire
- Rated Torque (lb-in): 2.75 [50 Hz] 2.25 [60 Hz]
- Rated Speed (rpm): 1250 [50 Hz] 1500 [60 Hz]
- RoHS Compliant: No
- Safety Standards: UL, CSA, EN, CE
- CE Marking: Low Voltage Directives
- Insulation Class: Class B (266F [130C])
- Overheat Protection: Built-in thermal protector (Automatic return type)
- Ambient Temperature Range: 14F ~ 104F (-10C ~ 40C) (nonfreezing)
- Ambient Humidity: 85% maximum (noncondensing)
- Degree of Protection: IP20
- Weight: 3.00 LBS

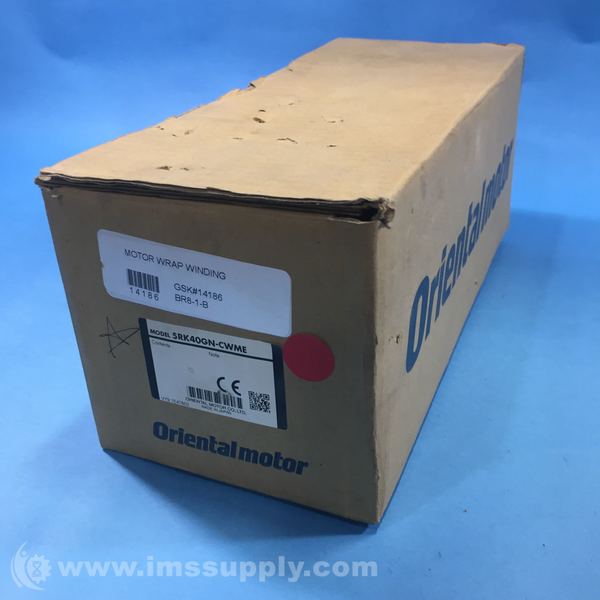

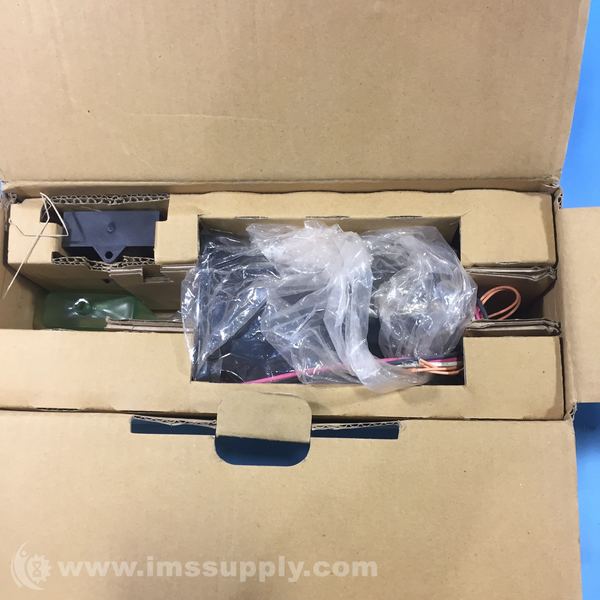

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 1 hours and 18 minutes.
