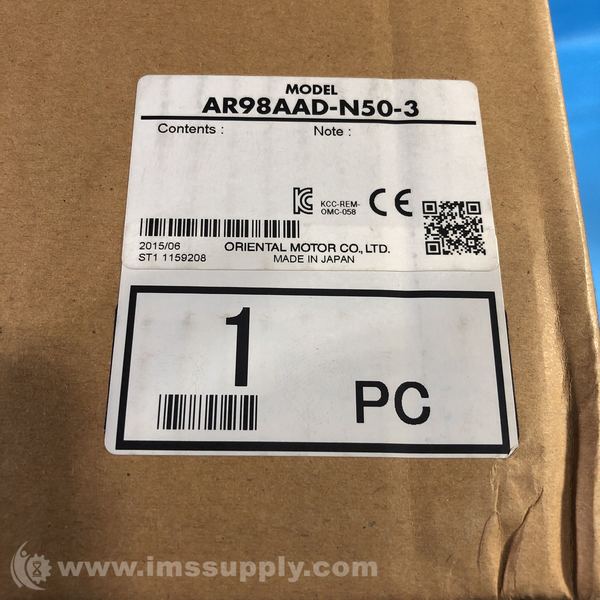

ORIENTAL MOTOR AR98AAD-N50-3 STEPPER MOTOR
Quick Overview
Manufactured By: ORIENTAL MOTOR
Manufacturer Part Number: AR98AAD-N50-3
IMS Product Code: 1866883
Packaging: Sold Individually
Description:
Oriental Motor AR98AAD-N50-3 Stepper Motor
Built-in Controller (Network Type) Stepper Motor with Planetary Gear, 50:1 Gear Ratio
Specifications
- Frame Size: 3.54 in 90 mm
- Motor Length: 6.42 in. 163 mm
- Holding Torque: 5120 oz-in 37 N·m
- Type: Continuous Duty
- Shaft/Gear Type: Planetary Gear
- Gear Ratio (X:1): 50 :1
- Backlash: 3 arc min (0.05 degrees)
- Feedback Device (Motor): Resolver
- Shaft: Single
- Electromagnetic Brake: Not Equipped
- Power Supply: Single-Phase 100-115 VAC
- Resolution (Resolution Setting: 1000 P/R): 0.0072 degrees/Pulse
- Permissible Speed Range (r/min): 0 ~ 60
- Rotor Inertia: 6 oz-in² 1100x10-7 kg·m²
- Control Power Supply: 24 VDC ± 5%, 0.5A
- RoHS Compliant: Yes
- Safety Standards: UL CE
- CE Marking: Low Voltage Directives EMC Directives
- Insulation Class: [Motor] Class B [130 degrees C (266 degrees F)]
- Ambient Temperature (Motor): -10 ~ 50 degrees C (14 ~ 122 degrees F) (non-freezing)
- Ambient Temperature (Driver): 0 ~ 55 degrees C (32 ~ 131 degrees F) (non-freezing)
- Ambient Humidity: 85% or less (Non-condensing)
- Operating Atmosphere: No corrosive gases, dust water or oil
- Degree of Protection: [Motor] IP65 (excluding the mounting surface and connector) [Driver] IP10
- Stop Position Accuracy: ±5 arc minutes (±0.084 degrees)
- Shaft Runout: 0.05 mm (0.002 in.) T.I.R.
- Concentricity: 0.075 mm (0.003 in.) T.I.R.
- Perpendicularity: 0.075 mm (0.003 in.) T.I.R.
- Radial Load: 0 in. from Shaft End = 230 lb 0.2 in. from Shaft End = 260 lb 0.39 in. from Shaft End = 290 lb 0.59 in. from Shaft End = 310 lb 0.79 in. from Shaft End = 330 lb 0 mm from Shaft End = 1050 N 5 mm from Shaft End = 1160 N 10 mm from Shaft End = 1300 N 15 mm from Shaft End = 1380 N 20 mm from Shaft End = 1490 N
- Axial Load: 67 lb 300 N
- Driver Type: Built-in Controller (Stored Data Type)
- Number of Positioning Data Sets: 64 Points
- Positioning Operation: One-Shot, Linked, Linked 2, Sequential, Direct, Pushing
- Protocol: Modbus Protocol (Modbus RTU mode)
- Electrical Characteristics: EIA-485 compliance Twisted-pair wire (TIA/EIA-568B CAT5e or greater recommended) is used up to a total extension length of 50 m.
- Transmission/Reception Mode: Half-duplex communication
- Baud Rate: 9600 bps/19200 bps/57600 bps/115200 bps
- Physical Layer: Asynchronous mode (data: 8-bit, stop bit: 1-bit/2-bit, parity: none/odd/even)
- Connection Type: Up to 31 units can be connected to one programmable controller (master equipment).
- Weight: 1.00 lbs
New:

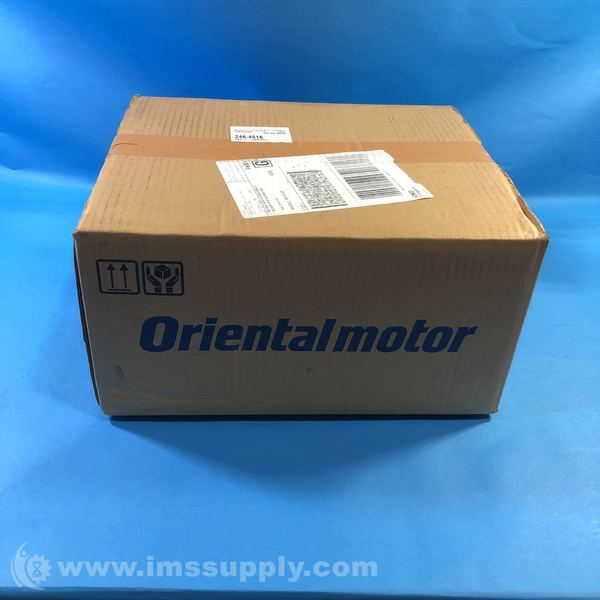

A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
