ORIENTAL MOTOR FPW540A2-12.5U WASHDOWN GEAR MOTOR
Quick Overview
Manufactured By: ORIENTAL MOTOR
Manufacturer Part Number: FPW540A2-12.5U
IMS Product Code: 2154958
Packaging: Sold Individually
Description:

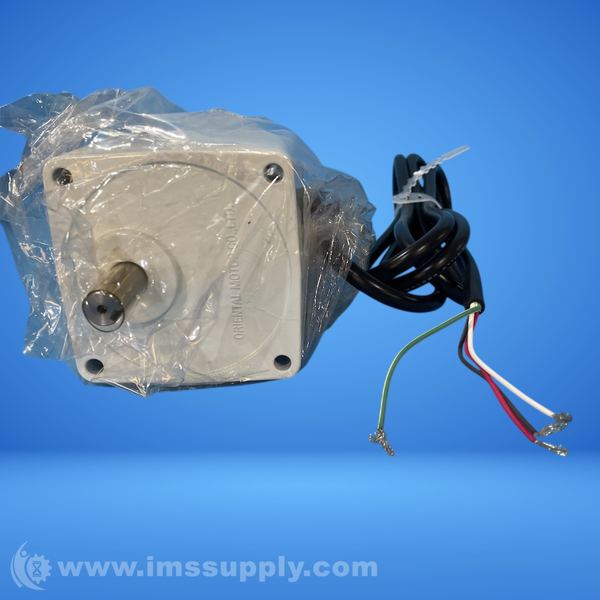

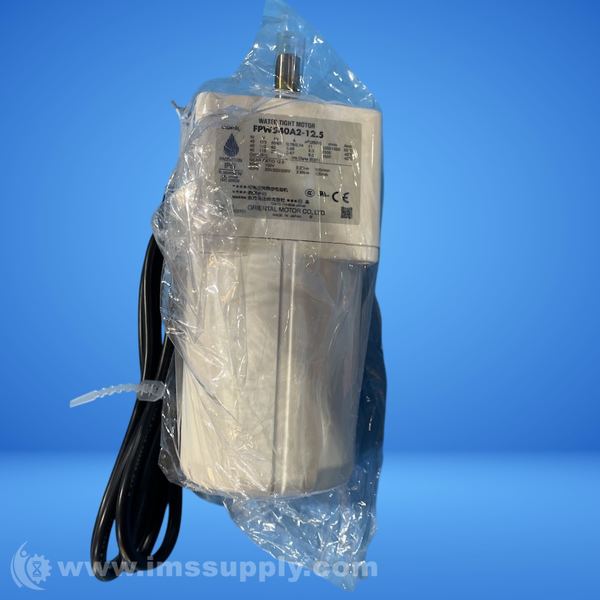

Oriental Motor FPW540A2-12.5U Washdown Gear Motor
40 W (1/19 HP) FPW Series Single-Phase, Washdown Gear Motors
Specifications
- Motor Type: IP67 Rated Washdown Induction
- Frame Size: 3.54 in 90 mm
- Output Power: 40 W (1/19 HP)
- Voltage (VAC): Single-Phase 110/115 VAC
- Frequency (Hz): 60
- Current: 0.67 A [115 VAC] 0.68 A [110 VAC]
- Gear Ratio (X:1): 12.5 :1
- Output Shaft Diameter: 12 mm
- Rated Torque: 23 lb-in 2.6 N·m
- Rated Speed (rpm): 144
- Degree of Protection: IP67
- Insulation Class: Class B (266ºF [130ºC])
- Ambient Temperature Range: 14ºF ~ 104ºF (-10ºC ~ 40ºC) (nonfreezing)
- Overheat Protection: Built-in thermal protector (Automatic return type)
- Safety Standards: UL CSA CCC EN CE
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 1 hours and 26 minutes.
