ORIENTAL MOTOR MU1225S-21 AC AXIAL FAN
Quick Overview
Manufactured By: ORIENTAL MOTOR
Manufacturer Part Number: MU1225S-21
IMS Product Code: 2168007
Packaging: Sold Individually
Description:

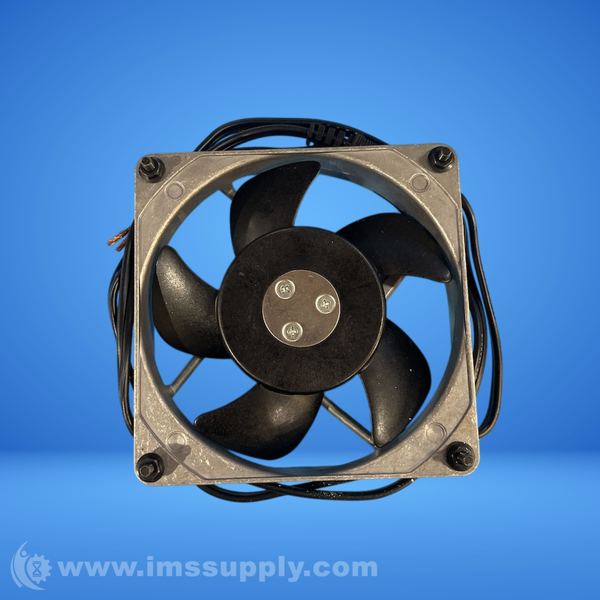

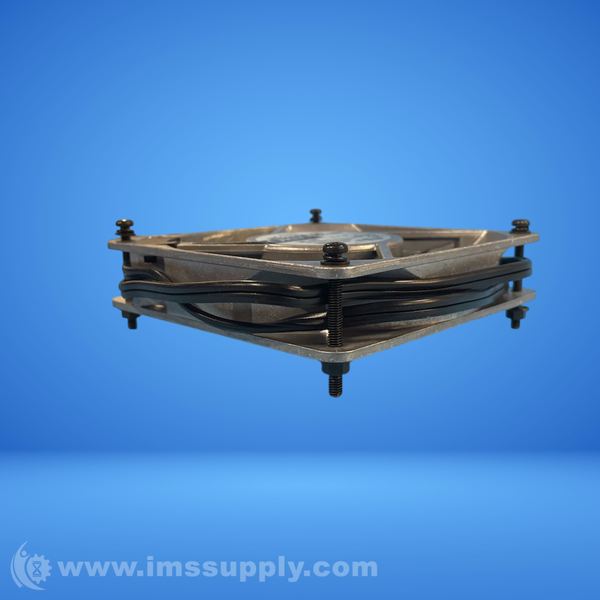

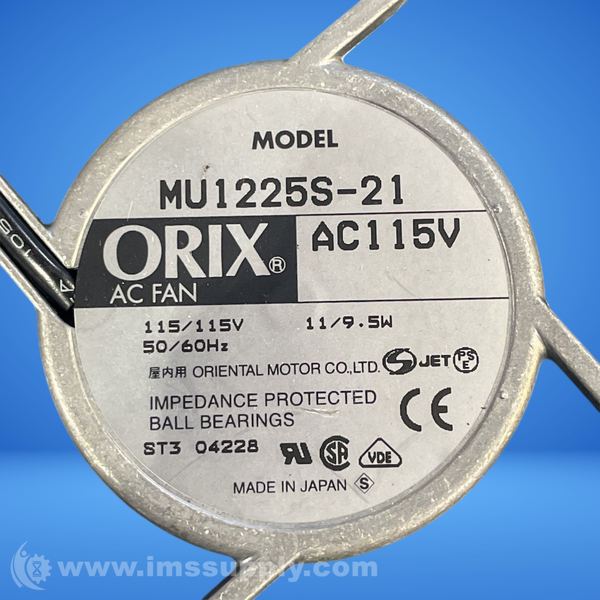

Oriental Motor MU1225S-21 AC Axial Fan
4.69 in. (119 mm) AC Axial Fan
Specifications
- Frame Size: 4.69 in 119 mm
- Thickness: 0.98 in. 25 mm
- Power Supply: Single-Phase 115 VAC
- Frequency: 50 Hz 60 Hz
- Current: 0.12 A [115 VAC, 60 Hz] 0.14 A [115 VAC, 50 Hz]
- Connection Type: Plug
- Type: Standard Speed
- Speed (r/min): 2500 [50 Hz] 2950 [60 Hz]
- Max. Air Flow: 56.5 CFM [50 Hz] 67.1 CFM [60 Hz] 1.6 m3/min [50 Hz] 1.9 m3/min [60 Hz]
- Max. Static Pressure: 0.196 inH2O [50 Hz] 0.176 inH2O [60 Hz] 49 Pa [50 Hz] 44 Pa [60 Hz]
- Noise Level: 36 dB (A) [50 Hz] 40 dB (A) [60 Hz]
- Fan Kit: Fan Only
- RoHS Compliant: Yes
- Safety Standards: UL CSA JET EN CE
- CE Marking: Low Voltage Directives
- Insulation Resistance: 100 MΩ or more when 500 VDC is applied between the windings and the frame under normal ambient temperature and humidity.
- Dielectric Strength: Sufficient to withstand 1.5 kV at 50Hz applied between the windings and the frame for 1 minute under normal ambient temperature and humidity.
- Temperature Rise: 54ºF (30ºC) or less measured by the thermometer method after the temperature of the case has stabilized after continuous operation under normal ambient temperature and humidity.
- Insulation Class: Class E (248ºF [120ºC]), Recognized as Class A (221ºF [105ºC]) by UL and CSA standards.
- Overheat Protection: Impedance protection
- Ambient Temperature Range: 14ºF ~ 140ºF (-10ºC ~ 60ºC)
- Ambient Humidity: 85% or less (noncondensing)
- Alarm: None
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
