ORIENTAL MOTOR MU925S-21 AC AXIAL FAN
Quick Overview
Manufactured By: ORIENTAL MOTOR
Manufacturer Part Number: MU925S-21
IMS Product Code: 2123377
Packaging: Sold Individually
Description:

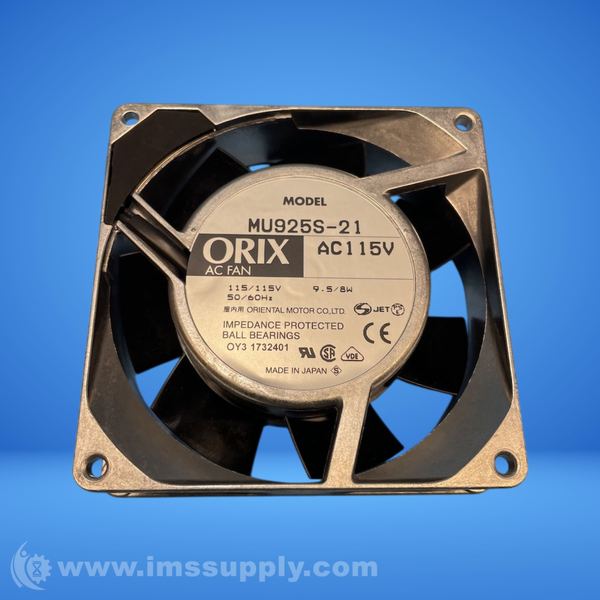

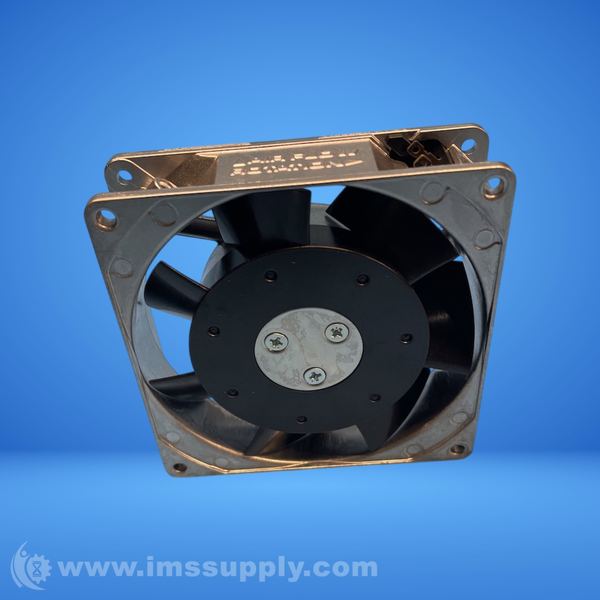

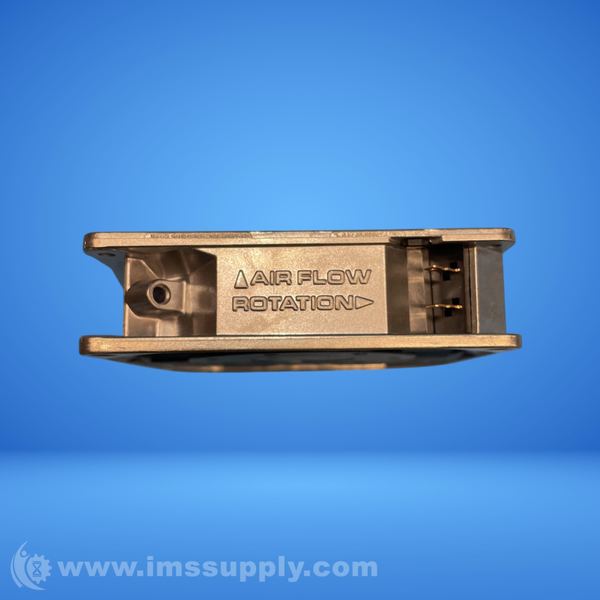

Oriental Motor MU925S-21 AC Axial Fan
AC Axial Fan
Specifications
- Frame Size: 3.62 in/92 mm
- Thickness: 0.98 in/25 mm
- Power Supply: Single-Phase 115 VAC
- Frequency: 50 Hz/60 Hz
- Current: 0.10 A [115 VAC, 60 Hz] 0.11 A [115 VAC, 50 Hz]
- Connection Type: Plug
- Type: Standard Speed
- Speed: 2600 [50 Hz] 3000 [60 Hz]
- Max Air Flow: 33.5 CFM [50 Hz] 38.8 CFM [60 Hz]
- Max Static Pressure: 0.176 inH2O [50 Hz] 0.237 inH2O [60 Hz]
- Noise Level: 35 dB (A) [50 Hz] 39 dB (A) [60 Hz]
- RoHS Compliant: Yes
- Safety Standards: UL CSA JET EN CE
- CE Marking: Low Voltage Directives
- Insulation Resistance: 100 M or more
- Dielectric Strength: 1.5 kV at 50Hz
- Temperature Rise: 54 F (30 C) or less
- Insulation Class: Class E (248 F [120 C])
- Overheat Protection: Impedance protection
- Ambient Temperature: 14 F ~ 140 F (-10 C ~ 60 C)
- Ambient Humidity: 85% or less
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 3 hours and 10 minutes.
