ORIENTAL MOTOR PK245-01AA 2-PHASE STEPPER MOTOR
Quick Overview
Manufactured By: ORIENTAL MOTOR
Manufacturer Part Number: PK245-01AA
IMS Product Code: 2125744
Packaging: Sold Individually
Description:

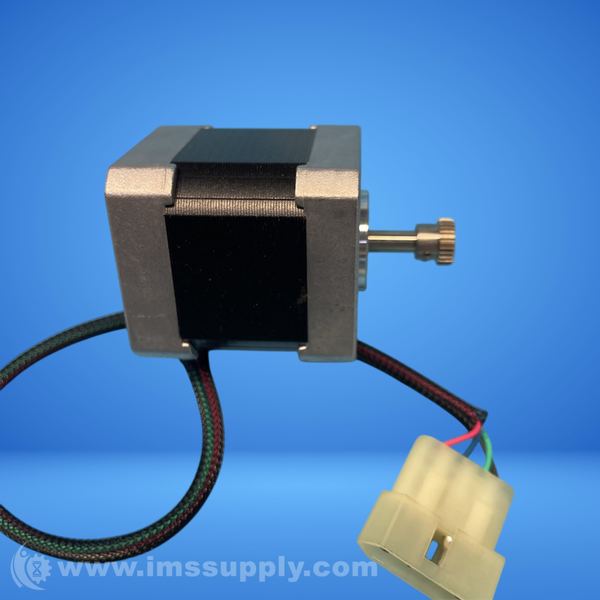

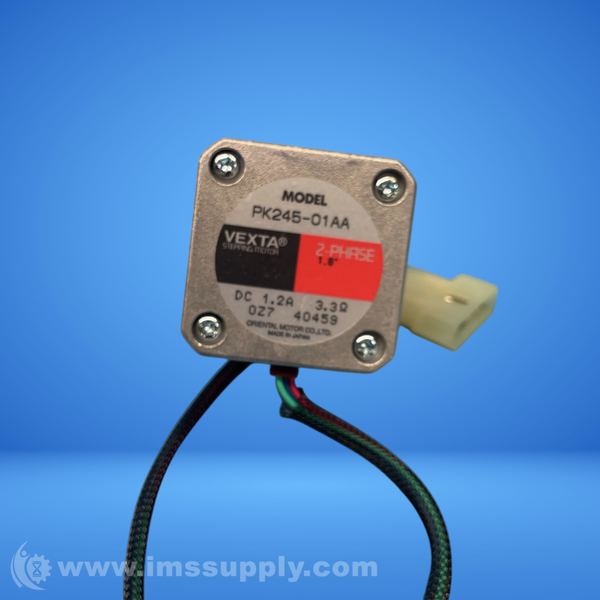

Oriental Motor PK245-01AA 2-Phase Stepper Motor
2-Phase stepper motor with 1.8 degree step angle and 61 oz-in holding torque.
Specifications
- Motor Type: 2-Phase
- Motor Frame Size: 1.65 in. sq.
- Shaft/Gear Type: Round Shaft (No Gearhead)
- Holding Torque: Bipolar (Series) 61 oz-in Unipolar 45 oz-in
- Connection Type: Bipolar (Series) Unipolar
- Lead Wires: 6
- Current per Phase (A/phase): 0.85 [Bipolar (Series)] 1.2 [Unipolar]
- Voltage (VDC): 5.6 [Bipolar (Series)] 4 [Unipolar]
- Resistance (O/phase): 6.6 [Bipolar (Series)] 3.3 [Unipolar]
- Inductance (mH/phase): 11.2 [Bipolar (Series)] 2.8 [Unipolar]
- Step Angle: 1.8 degrees
- Rotor Inertia (oz-in2): 0.37 oz-in2
- Insulation Class: Class B [266ºF (130ºC)]
- Ambient Temperature Range: 14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)
- Step Accuracy: ±3 arc minutes (±0.05º)
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
