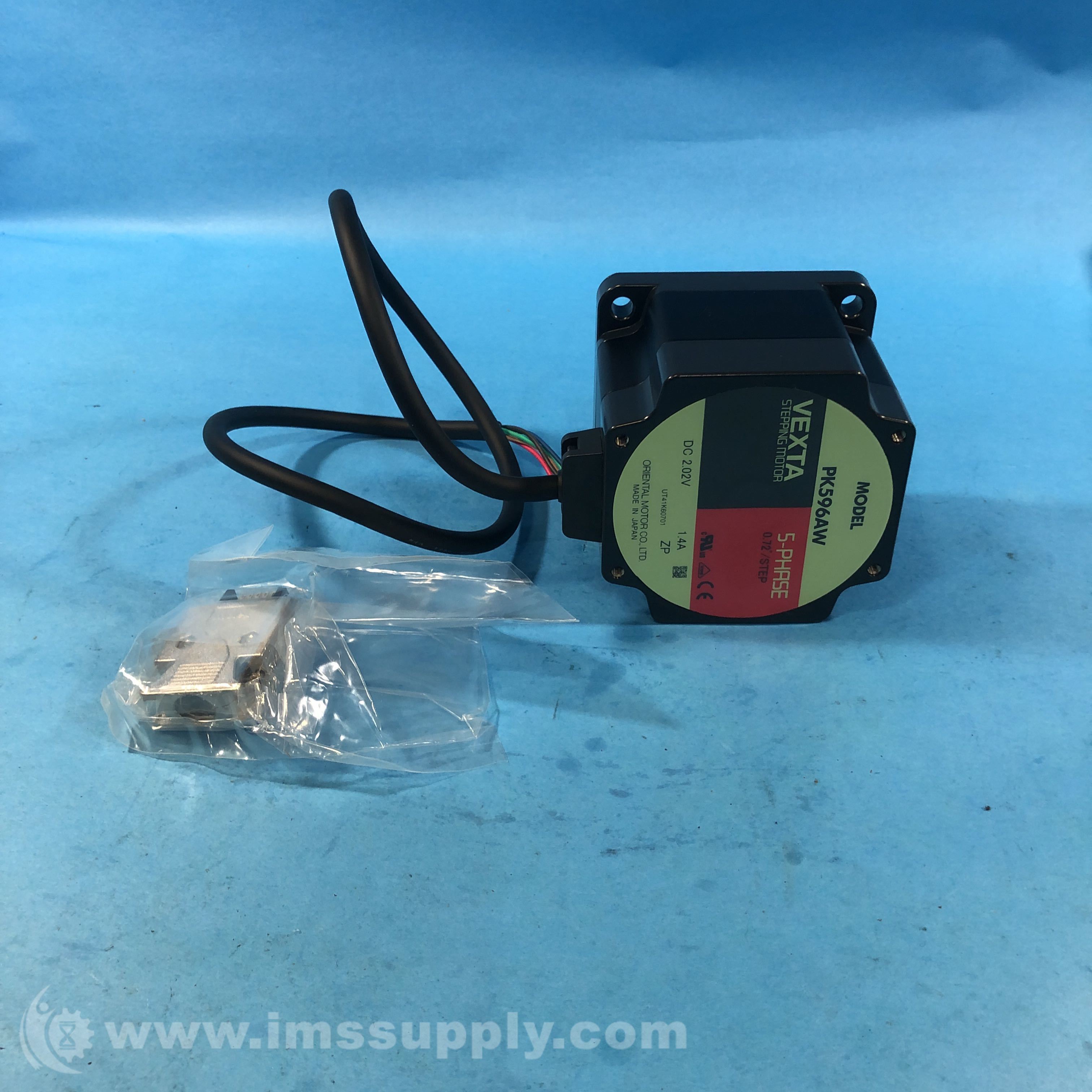

ORIENTAL MOTOR PK596AW 5-PHASE STEPPER MOTOR
Quick Overview
Manufactured By: ORIENTAL MOTOR
Manufacturer Part Number: PK596AW
IMS Product Code: 1919217
Packaging: Sold Individually
Description:
Oriental Motor PK596AW 5-Phase Stepper Motor
5-phase stepper motor with 0.72 degrees/step resolution and 1.4 A/phase current rating.
Specifications
- Motor Frame Size: 3.35 in. sq.
- Shaft: Single
- Type: Standard
- Shaft/Gear Type: Round Shaft (No Gearhead)
- Lead Wires: 5
- Current per Phase: 1.4 A/phase
- Step Angle: 0.72 degrees/step
- Rotor Inertia: 7.7 oz-in2
- Maximum Holding Torque: 18.13 lb-in
- Insulation Resistance: 100 MO minimum
- Dielectric Strength: 1.5 kV, 50/60 Hz for 1 minute
- Temperature Rise: 80°C or less at rated current
- Insulation Class: Class B (130°C)
- Ambient Temperature Range: -10°C to 50°C
- Ambient Humidity: 85% or less, noncondensing
- Shaft Runout: 0.05 mm T.I.R.
- Concentricity: 0.075 mm T.I.R.
- Perpendicularity: 0.075 mm T.I.R.
- Radial Play: 0.025 mm max. at 5 N
- Axial Play: 0.075 mm max. at 10 N
- Brand: Oriental Motor
- Model: PK596AW
- MPN: PK596AW
- Country of Origin: Japan
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
