ORIENTAL MOTOR PKP233D08A STEPPER MOTOR
Quick Overview
Manufactured By: ORIENTAL MOTOR
Manufacturer Part Number: PKP233D08A
IMS Product Code: 1866956
Packaging: Sold Individually
Description:

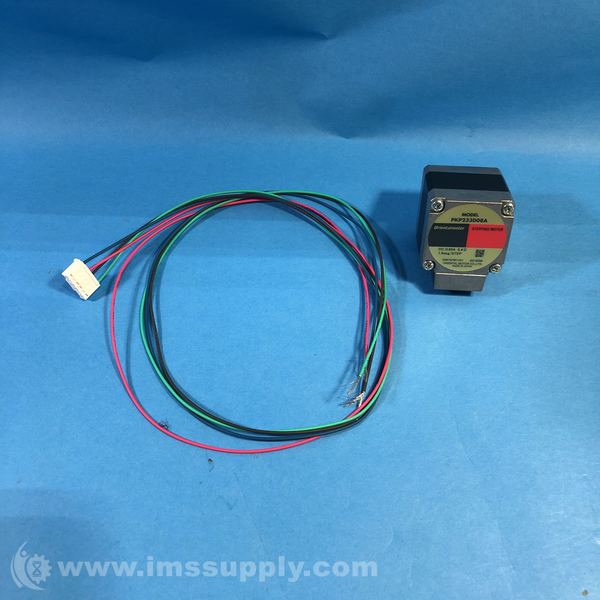

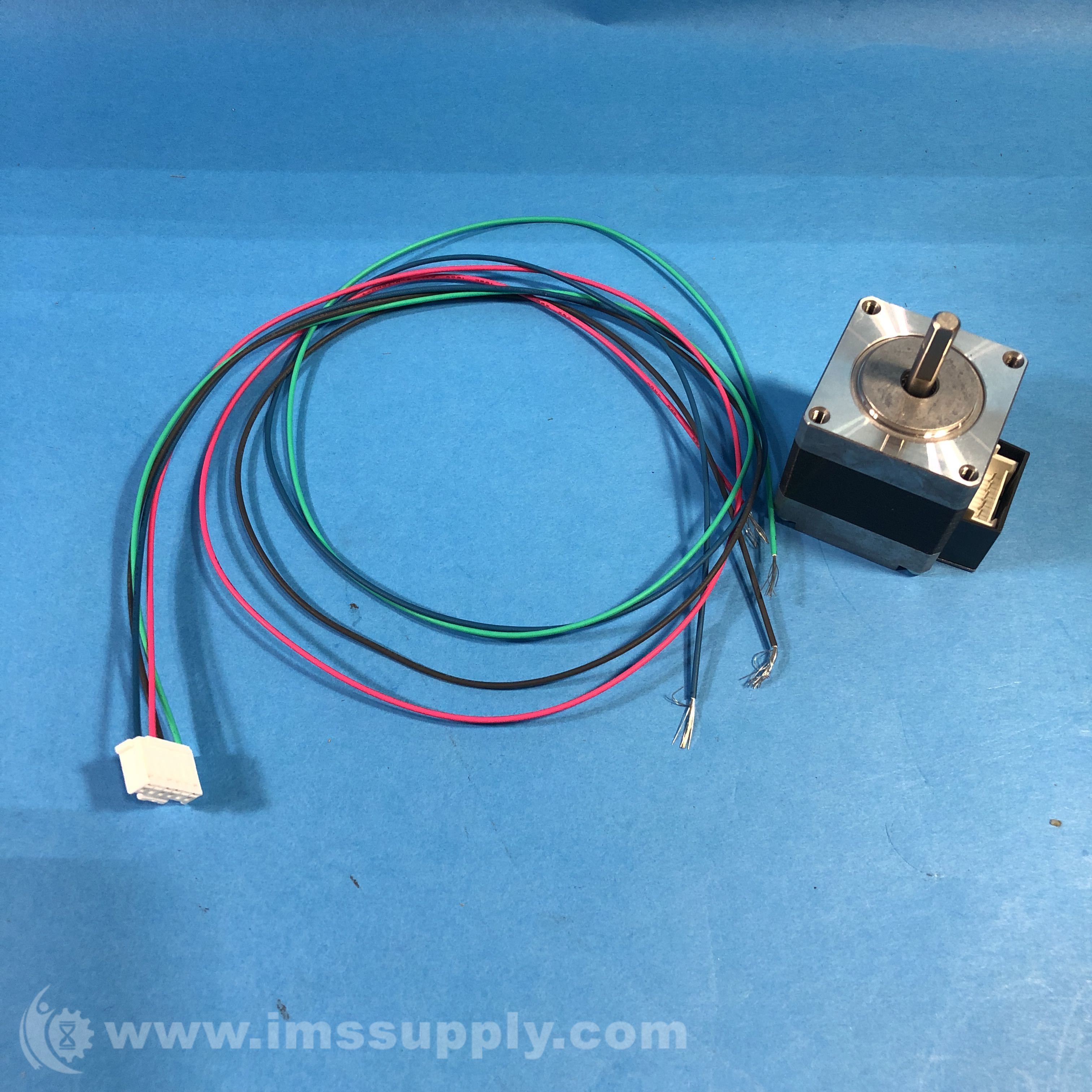

Oriental Motor PKP233D08A Stepper Motor
2-Phase Bipolar Stepper Motor, 1.8 degrees Step Angle, 35mm Frame Size
Specifications
- Motor Type: 2-Phase
- Step Angle: 1.8 degrees
- Frame Size: 35 mm
- Motor Length: 37 mm
- Type: Standard
- Holding Torque: 0.2 N·m
- Current per Phase: 0.85 A
- Voltage: 4.6 VDC
- Resistance: 5.4 O/phase
- Inductance: 5.6 mH/phase
- Shaft Type: Round Shaft with Flat
- Output Shaft Diameter: 5 mm
- Lead Wires: 4
- Rotor Inertia: 24x10-7 kg·m²
- Shaft Runout: 0.05 mm T.I.R.
- Stop Position Accuracy: ±3 arc minutes
- Radial Load: Various
- Axial Load: 10 N
- Radial Play: 0.025 mm maximum
- Axial Play: 0.075 mm maximum
- Concentricity: 0.075 mm T.I.R.
- Perpendicularity: 0.075 mm T.I.R.
- RoHS Compliant: Yes
- Insulation Class: Class B
- Insulation Resistance: 100 MO or more
- Dielectric Strength: 0.5 kVAC
- Temperature Rise: 80°C or less
- Ambient Temperature: -10 to 50°C
- Ambient Humidity: 85% or less
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
