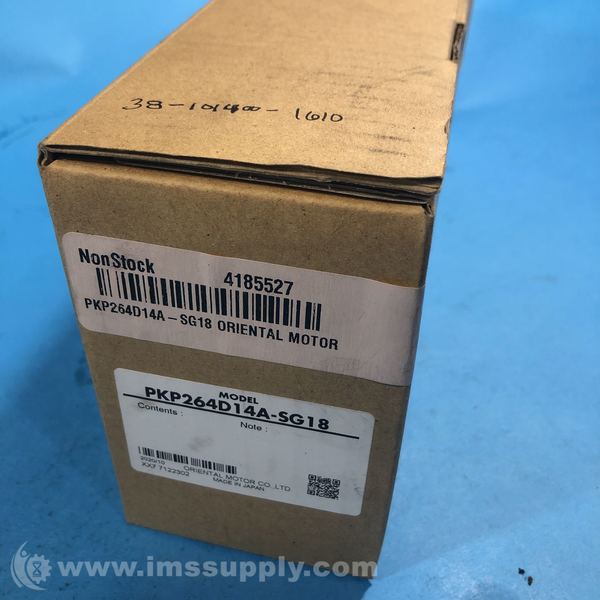

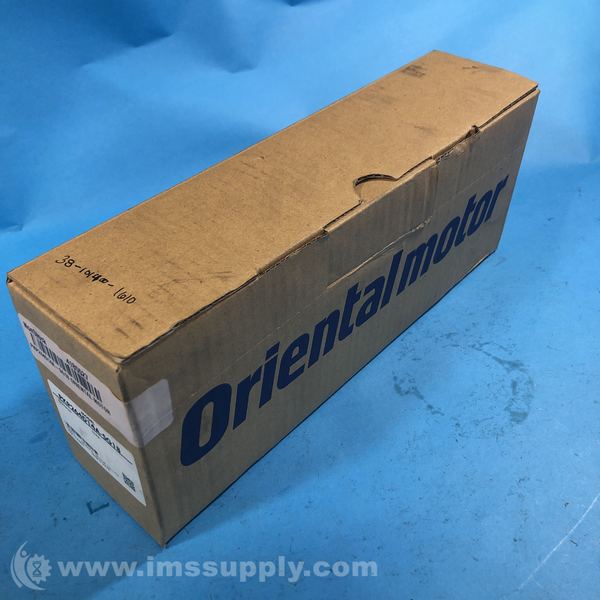

ORIENTAL MOTOR PKP264D14A-SG18 2-PHASE STEPPER MOTOR
Quick Overview
Manufactured By: ORIENTAL MOTOR
Manufacturer Part Number: PKP264D14A-SG18
IMS Product Code: 1923947
Packaging: Sold Individually
Description:
Oriental Motor PKP264D14A-SG18 2-Phase Stepper Motor
2-Phase Stepper Motor with Spur Gear (Offset Shaft)
Specifications
- Motor Type: 2-Phase
- Basic Step Angle: 1.8 degrees
- Frame Size: 2.36 in / 60 mm
- Motor Length: 3.09 in / 78.50 mm
- Holding Torque: 420 oz-in / 3 N·m
- Current per Phase: 1.4 A/phase
- Voltage: 3.08 VDC
- Resistance: 2.2 O/phase
- Inductance: 4.5 mH/phase
- Shaft/Gear Type: Spur Gear (Offset Shaft)
- Gear Ratio: 18:1
- Output Shaft Diameter: 8 mm
- Backlash: 2 arc min (0.034 degrees)
- Shaft: Single
- Encoder: Not Equipped
- Motor Connection Type: Connector
- Connection Type: Bipolar
- Lead Wires: 4
- Rotor Inertia: 0.66 oz-in² / 120x10-7 kg·m²
- RoHS Compliant: Yes
- Insulation Class: Class B [266°F (130°C)]
- Ambient Temperature Range: 14 ~ 122°F (-10 ~ 50°C) (non-freezing)
- Ambient Humidity: 85% or less (Non-condensing)
- Shaft Runout: 0.05 mm (0.002 in.) T.I.R.
- Step Accuracy: ±3 arc minutes (±0.05 degrees)
- Radial Load: Varies by shaft end distance
- Axial Load: 6.7 lb / 30 N
- Radial Play: 0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.)
- Axial Play: 0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.)
- Concentricity: 0.075 mm (0.003 in.) T.I.R.
- Perpendicularity: 0.075 mm (0.003 in.) T.I.R.
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
