PACIFIC BEARING PWN16 PLAIN LINEAR BEARING PILLOW BLOCK
Quick Overview
Manufactured By: PACIFIC BEARING
Manufacturer Part Number: PWN16
IMS Product Code: 2162313
Packaging: Sold Individually
Description:

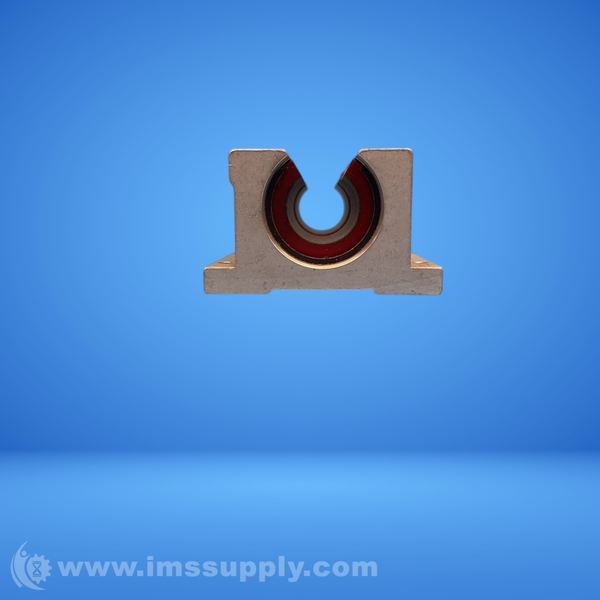

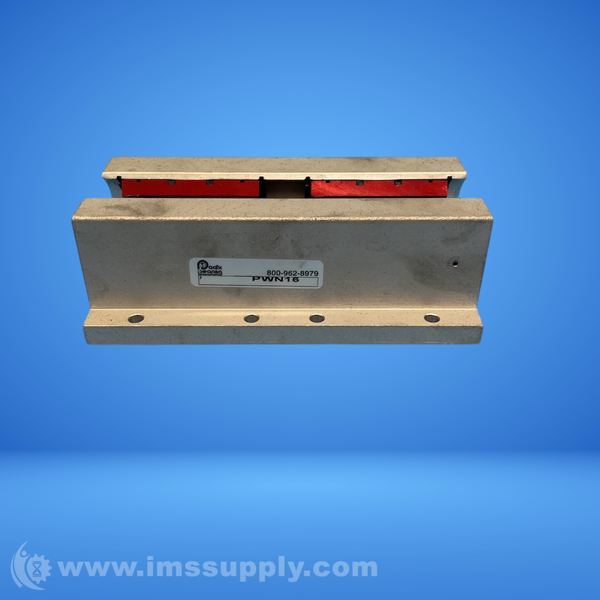

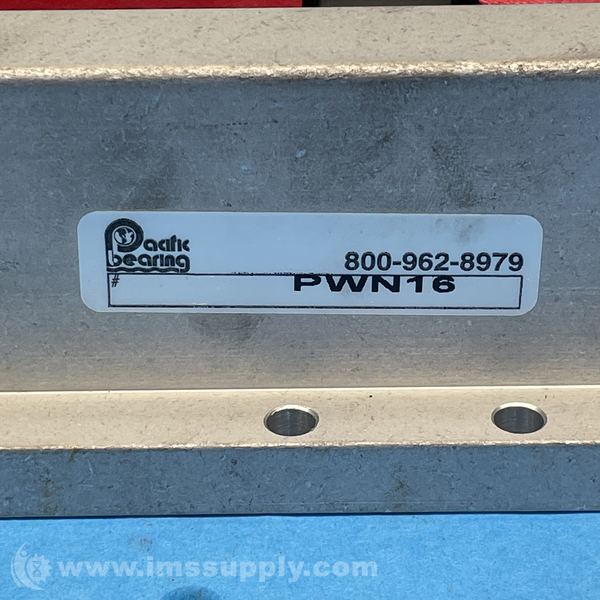

Pacific Bearing PWN16 Plain Linear Bearing Pillow Block
Twin plain linear bearing pillow block with open shell, 1 inch ID, made of aluminum alloy. Features precision cut Simplicity plain bearing with anodized aluminum shell and self-lubricating FrelonGOLD bearing liner.
Specifications
- Approx. Weight: 1.97 lbs
- Width: 1.56 in
- Length: 2.25 in
- Height: 1.44 in
- Precision ID: 0.0005" running clearance bearing to shaft
- Temperature range: -400�F to +400�F or -240�C to +204�C
- Pillow Block Type: Twin Plain Linear Bearing Pillow Block
- Housing Type: Open
- Shaft Diameter: 1.0000 in
- Overall Width: 3.2500 in
- Operating Temperature Range: -400 to 400 �F
- Locking Type: Roll Pin
- Retaining Ring: External
- Slot Angle (Degrees): 60
- Accelerated Speed: 14 Feet/Second
- Material: Aluminum alloy
- Bearing Type: Plain Linear Bearing
- Liner Material: FrelonGOLD
- Nominal ID (in): 1.00
- Nominal OD (in): 3.25
- Static Load (lbs): 14,100
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 33 minutes.
