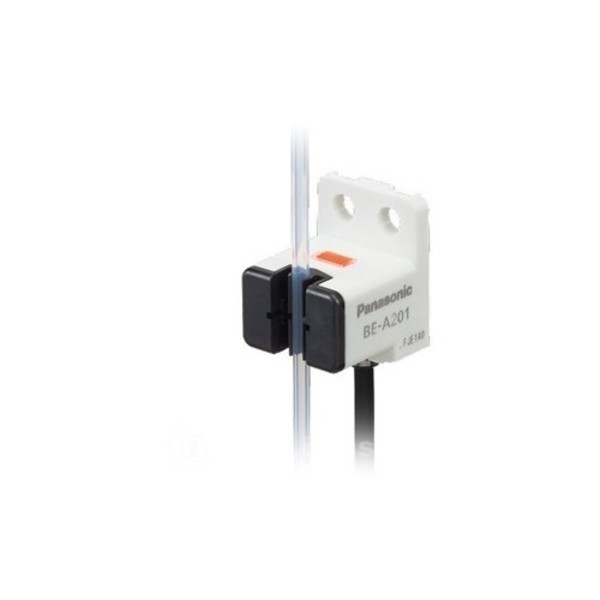

PANASONIC BE-A201P OPTICAL BUBBLE SENSOR

MSRP: $82.00
Starting At: $79.95

Quick Overview

Manufactured By: PANASONIC
Manufacturer Part Number: BE-A201P
IMS Product Code: 1974490
Packaging: Sold Individually

Description:

Panasonic BE-A201P Optical Bubble Sensor for Ø2mm PFA Tubing - Two PNP Outputs - 2m Cable, High Speed Response Time – 30µs, Detects Liquid / Bubbles In Small Diameter 2mm Tubes, One-touch Attachment Without Using Tools, 5 to 24 VDC – For A Wide Range Of Power Supply Voltages, Built-in Amplifier, Liquid-Absent: ON and Liquid-Present: ON, CE Approved, CE: EMC Directive

Specifications:

  • Series: BE-A
  • Sensing Type: Liquid Gap/Bubble sensor
  • Features: Detects air gaps as small as 0.8mm in ø2mm OD × ø1mm ID tubing
  • Sensing Source: Infrared LED (non-modulated)
  • Minimum Detectable Object: 0.8mm air gap
  • Supply Voltage: DC
  • Supply Voltage Details: 5 to 24VDC
  • Control Output: PNP
  • Control Output Mode: Liquid-absent-ON or Liquid-present-ON selectable
  • Response Time: 30µs or less
  • Operating Temperature: -25 to +55 °C
  • IP Rating: IP40
  • Enclosure Details: PBT enclosure, Polyamide tube holder, polycarbonate indicator
  • P) Connection Details: Cable 1 meter
  • Item Weight: 0.07 lbs per EA

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 30 Days
