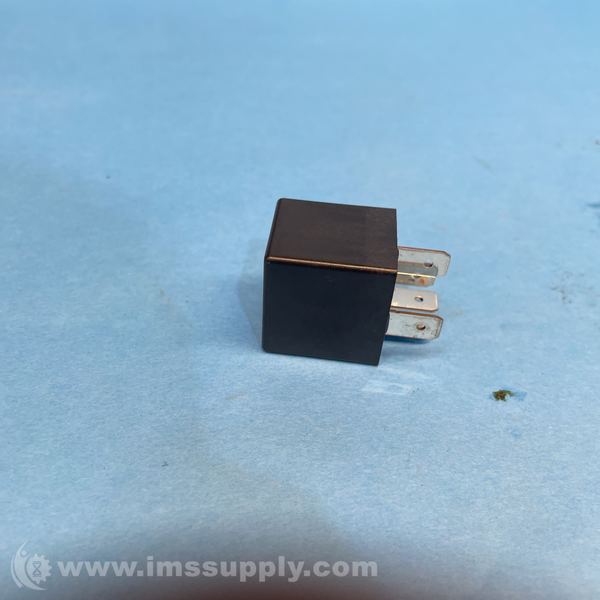

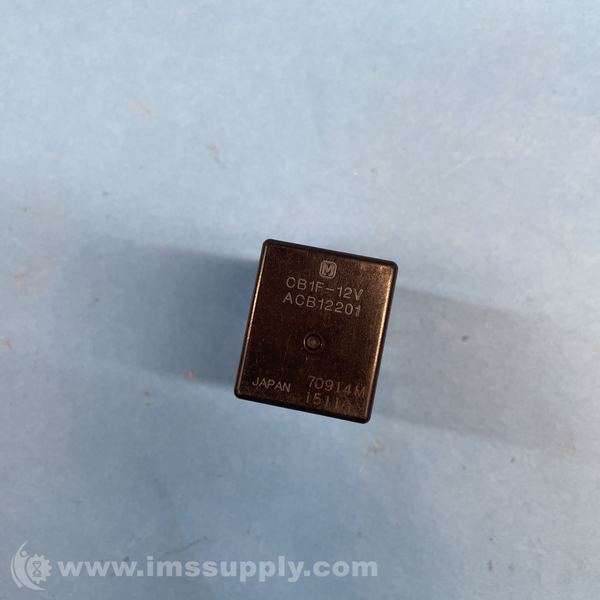

PANASONIC CB1F-12V AUTOMOTIVE RELAY
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: CB1F-12V
IMS Product Code: 2137528
Packaging: Sold Individually
Description:
Panasonic CB1F-12V Automotive Relay
Electromagnetic relay with SPDT configuration, 12V DC coil voltage, rated for 40A, designed for automotive applications.
Specifications
- Protective Construction: Flux tight
- Terminal Type: Plug-in type
- Rated Coil Voltage: 12V DC
- Contact Arrangement: 1 Form C
- Contact Capacity: Standard
- Operating Function: Single side stable
- Operate (Set) Voltage: 3 to 7V DC
- Release (Reset) Voltage: 1.2 to 4.2V DC
- Rated Operating Current: 117 mA
- Coil Resistance: 103O
- Rated Operating Power: 1.4W
- Usable Voltage Range: 10 to 16V DC
- Contact Resistance: Max. 15mO
- Contact Material: Ag alloy
- Nominal Switching Capacity: N.O.side: 40A 14V DC, N.C.side: 30A 14V DC
- Max. Carrying Current: N.O. side: 40A, N.C. side: 30A
- Min. Switching Load: 1A 14V DC
- Insulation Resistance: Min. 20 MO
- Dielectric Strength (Between Open Contacts): 500 Vrms for 1 min.
- Dielectric Strength (Between Contacts and Coil): 500 Vrms for 1 min.
- Operate (Set) Time: Max. 15ms
- Release (Reset) Time: Max. 15ms
- Shock Resistance: Functional - Min. 200 m/s2, Destructive - Min. 1,000 m/s2
- Vibration Resistance: Functional - 10 to 500 Hz, Min. 44.1 m/s2, Destructive - 10 to 2,000 Hz, Min. 44.1 m/s2
- Expected Life: Mechanical - Min. 10^6, Electrical - Min. 10^5
- Conditions: Ambient temperature - –40 to +85?, Humidity: 5 to 85% RH
- Weight: Approx. 33 g
