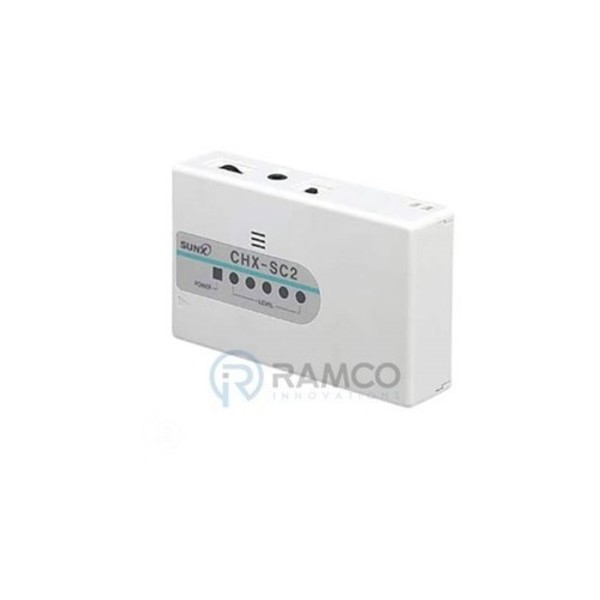

PANASONIC CHX-SC2 ALIGNMENT CHECKER FOR THRUBEAM SENSORS
Starting At: $173.55
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: CHX-SC2
IMS Product Code: 1974538
Packaging: Sold Individually
Description:
Panasonic CHX-SC2 Alignment Checker for Thrubeam Sensors, and Retro Reflective Sensors
Useful for beam alignment of thrubeam and retroreflective sensors
Light and sound indicate optimum position
When the emitter of the thru-beam type photoelectric sensor and CHX-SC2 face each other along a straight line and their optical axes match, the number of LEDs which light up in the level indicator, as well as, the sound tone increases.
Since the sound tone can also be heard with an earphone, the sensor checker can be used in a noisy place
Suitable for all sensors
This product can be used with infrared, as well as, red beam type of thru-beam type photoelectric sensors.
Compact and light weight
Since the sensor checker has a compact size (W100 x H60 x D23 mm W3.937 x H2.362 x D0.906 in), it can be conveniently carried to the place of use. (Power supply: 9 V dry cell)
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
