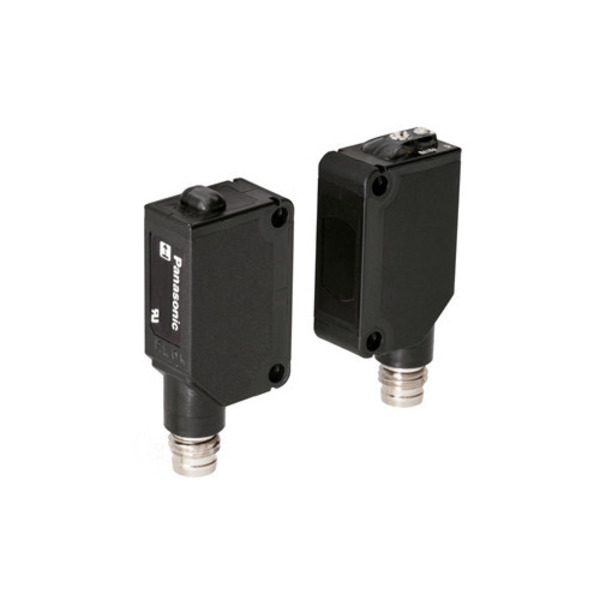

PANASONIC CX-413-Z COMPACT PHOTOELECTRIC THRUBEAM SENSOR

MSRP: $98.00
Starting At: $95.55

Quick Overview

Manufactured By: PANASONIC
Manufacturer Part Number: CX-413-Z
IMS Product Code: 1976556
Packaging: Sold Individually

Description:

Panasonic CX-413-Z Compact Photoelectric Thrubeam Sensor, 30 M Sensing Distance, NPN, M8 4 Pin Receptacle, With IR LED Source, 12 to 24 VDC Supply With NPN Output, Selectable LO and DO Mode, Compact Housing Features 30 Meter Distance, and M8 4 Pin QD Single Turn Adjustment Potentiometer, 1ms Response

Specifications:

  • Series: CX-400
  • Sensor Body Type: Compact Rectangular Plastic
  • Sensing Mode: Thrubeam
  • Sensing Mode Details: Long sensing range
  • Sensor Features: Potentiometer adjustment, ø12mm minimum sensing target - opaque. 05mm repeatability
  • Light Source: Infrared LED
  • Supply Voltage Details: 12 to 24VDC
  • Sensing Range: 30 meter
  • Output: NPN
  • Output Details: 1 each NPN
  • Output Mode: Light-On/Dark-On selectable
  • Construction: PBT enclosure, Acrylic lens
  • Temperature: -25º to +55º C
  • IP/Nema Rating Details: IP67
  • Connection Detail: M8 4P QD
  • Item Weight: 1.00 lbs per EA
