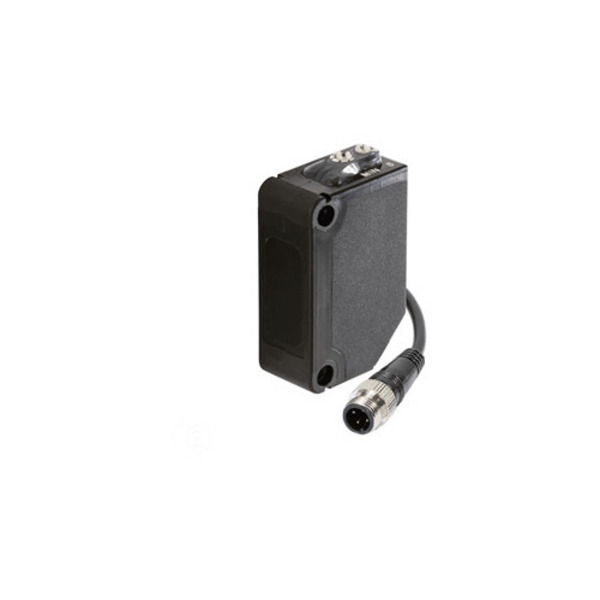

PANASONIC CX-423-P-J DIFFUSE REFLECTIVE PHOTOELECTRIC SENSOR

MSRP: $169.00
Starting At: $164.78

Quick Overview

Manufactured By: PANASONIC
Manufacturer Part Number: CX-423-P-J
IMS Product Code: 1976600
Packaging: Sold Individually

Description:

Narrow-View CompactPanasonic CX-423-P-J Diffuse Reflective Photoelectric Sensor, 70-300 mm Sensing Distance, PNP, M12 Pigtail, with Red LED Source, 12 to 24 VDC Supply With PNP Output, Selectable LO and DO Mode, Compact Housing Features 70 to 200mm Distance, and M12 4 Pin QD, Single Turn Adjustment Potentiometer, 1ms Response

Specifications:

  • Series: CX-400
  • Sensor Body Type: Compact Rectangular Plastic
  • Sensing Mode: Diffuse
  • Sensing Mode Details: Narrow View
  • Sensor Features: Potentiometer adjustment, Detects opaque, translucent, or transparent targets and 0.5mm copper wire. 15% or less hysterisis, 0.5mm repeatability
  • Light Source: Red LED
  • Supply Voltage Details: 12 to 24VDC
  • Sensing Range: 70mm to 300mm
  • Output: PNP
  • Output Details: 1 each PNP
  • Output Mode: Light-On/Dark-On selectable
  • Construction: PBT enclosure, Acrylic lens
  • Temperature: -25º to +55º C
  • IP/Nema Rating Details: IP67
  • Connection Detail: M12 4P pigtail
  • Item Weight: 1.00 lbs per EA

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 30 Days
