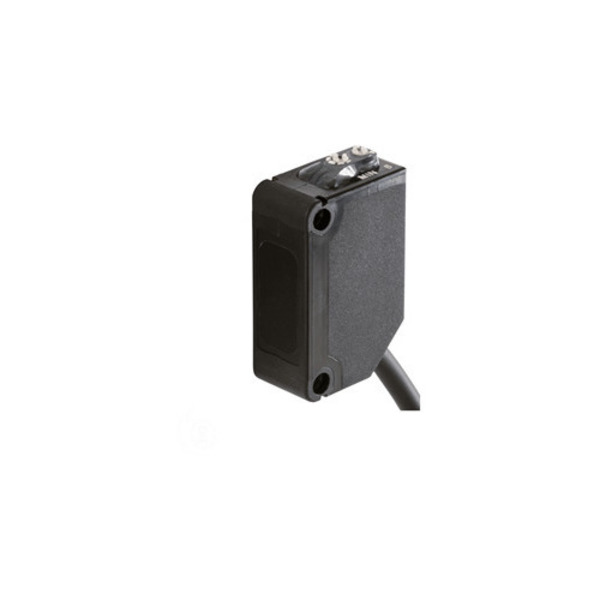

PANASONIC CX-424-P-C5 DIFFUSE REFLECTIVE PHOTOELECTRIC SENSOR
Starting At: $82.88
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: CX-424-P-C5
IMS Product Code: 1976623
Packaging: Sold Individually
Description:
Panasonic CX-424-P-C5 Diffuse Reflective Photoelectric Sensor, Compact, 100 mm Sensing Distance, PNP, 5m Cable, With IR LED Source, 12 to 24 VDC Supply With PNP Output, Selectable LO and DO Mode, Compact Housing Features 100 mm Distance, and 5m Connection Cable, Single Turn Adjustment Potentiometer, 1ms Response
Specifications:
- Series: CX-400
- Sensor Body Type: Compact Rectangular Plastic
- Sensing Mode: Diffuse
- Sensor Features: Potentiometer adjustment, Detects opaque, translucent, or transparent targets, 15% or less hysterisis, 1mm repeatability
- Light Source: Infrared LED
- Supply Voltage Details: 12 to 24VDC
- Sensing Range: 100mm
- Output: PNP
- Output Details: 1 each PNP
- Output Mode: Light-On/Dark-On selectable
- Construction: PBT enclosure, Acrylic lens
- Temperature: -25º to +55º C
- IP/Nema Rating Details: IP67
- Connection Detail: Cable 5m
- Item Weight: 0.10 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
