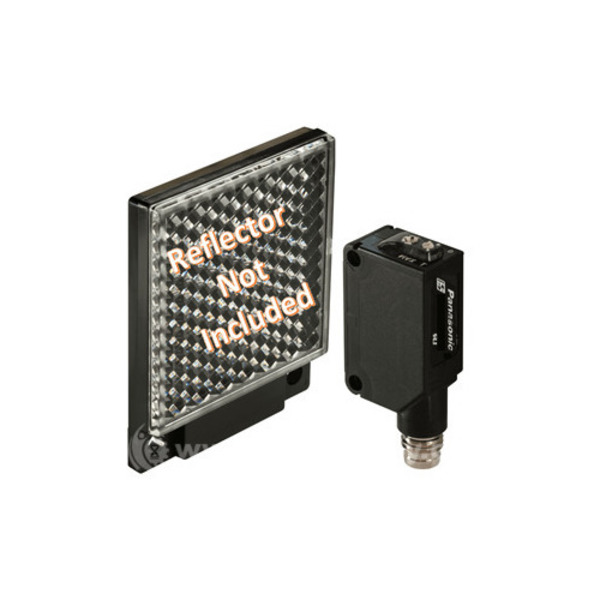

PANASONIC CX-491-P-Z-Y RETROREFLECTIVE PHOTOELECTRIC SENSOR

MSRP: $81.00
Starting At: $78.98

Quick Overview

Manufactured By: PANASONIC
Manufacturer Part Number: CX-491-P-Z-Y
IMS Product Code: 1976756
Packaging: Sold Individually

Description:

Panasonic CX-491-P-Z-Y Retroreflective Photoelectric Sensor, with Polarizing Filters, 3 m Sensing Distance, PNP, M8 4 Pin Receptacle, No Reflector, with Red LED Source, 12 to 24 VDC Supply with PNP Output, Selectable LO and DO Mode, Compact Housing Features 3 Meter Distance, and M8 4 Pin QD, Single Turn Adjustment pot. 1ms Response NO REFLECTOR

Specifications:

  • Series: CX-400
  • Sensor Body Type: Compact Rectangular Plastic
  • Sensing Mode: Retro-reflective
  • Sensing Mode Details: Polarized
  • Sensor Features: Potentiometer adjustment, ø50mm minimum sensing target - specular, translucent or opaque. 05mm repeatability
  • Light Source: Red LED
  • Supply Voltage Details: 12 to 24VDC
  • Sensing Range: 100mm to 3 meter
  • Output: PNP
  • Output Details: 1 each PNP
  • Output Mode: Light-On/Dark-On selectable
  • Construction: PBT enclosure, Acrylic lens
  • Temperature: -25º to +55º C
  • IP/Nema Rating Details: IP67
  • Connection Detail: M8 4P QD
  • Item Weight: 1.00 lbs per EA

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 30 Days

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. IMS Supply is not an authorized distributor, reseller or representative of Panasonic. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
