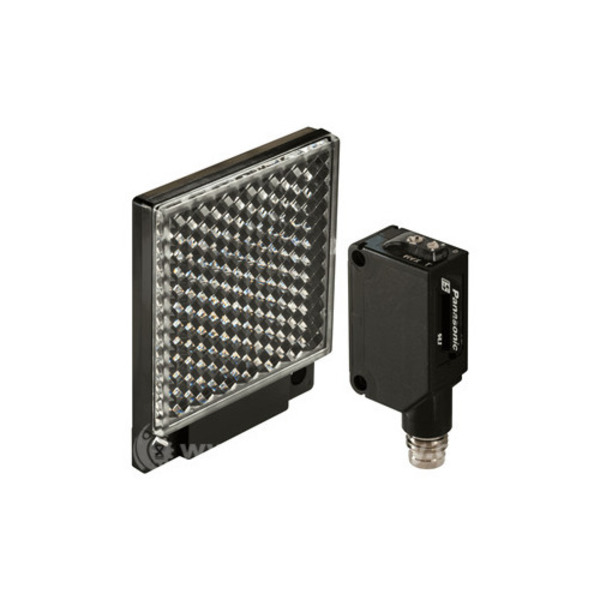

PANASONIC CX-491-Z RETROREFLECTIVE PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: CX-491-Z
IMS Product Code: 1976760
Packaging: Sold Individually
Description:
Panasonic CX-491-Z Retroreflective Photoelectric Sensor, with Polarizing Filters, 3 m Sensing Distance, NPN, M8 4 Pin Receptacle, with Red LED Source, 12 to 24 VDC Supply with NPN Output, Selectable LO and DO Mode, Compact Housing Features 3 Meter Distance, and M8 4 Pin QD, Single Turn Adjustment Potentiometer. 1ms Response
Specifications:
- Series: CX-400
- Sensor Body Type: Compact Rectangular Plastic
- Sensing Mode: Retro-reflective
- Sensing Mode Details: Polarized
- Sensor Features: Potentiometer adjustment, ø50mm minimum sensing target - specular, translucent or opaque. 05mm repeatability
- Light Source: Red LED
- Supply Voltage Details: 12 to 24VDC
- Sensing Range: 100mm to 3 meter
- Output: NPN
- Output Details: 1 each NPN
- Output Mode: Light-On/Dark-On selectable
- Construction: PBT enclosure, Acrylic lens
- Temperature: -25º to +55º C
- IP/Nema Rating Details: IP67
- Connection Detail: M8 4P QD
- Item Weight: 1.00 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
