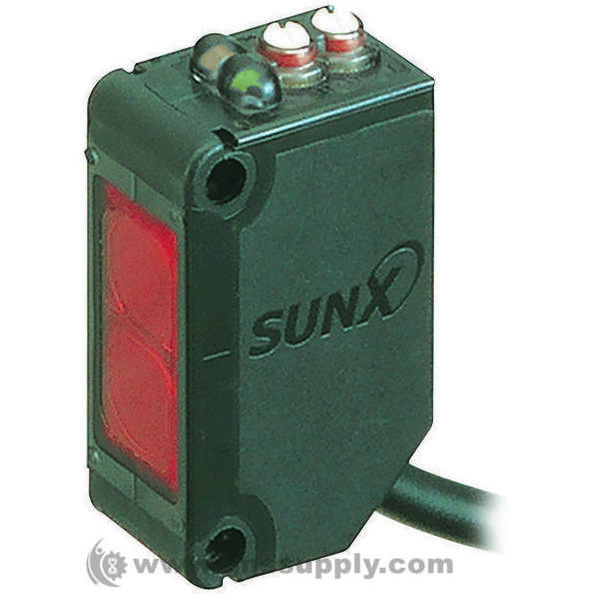

PANASONIC CX-491,PHOTOELECTRIC SENSOR, CX-400 SERIES
Starting At: $80.93
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: CX-491
IMS Product Code: 1761718
Packaging: Sold Individually
Description:
Panasonic CX-491,Photoelectric Sensor, CX-400 Series, Standard, Retroreflective, 3m, NPN, 12 to 24Vdc
The CX-491 is a retroreflective compact Photoelectric Sensor with polarizing filters. The sensing range and the sensing object of the retroreflective type sensor are specified for the RF-230 reflector. The PNP open-collector transistor output sensor is switchable either Light-ON or Dark-ON. The orange LED lights up when the output is ON. It features incorporated short-circuit protection and continuously variable adjuster (incorporated on the receiver for thru-beam type) sensitivity adjuster.
- Output short-circuit protection
- Continuously variable sensitivity adjuster
- Red LED emitting element
- PBT enclosure
- IP67 Protection rating (IEC)
- Sensor Output: NPN
- Sensing Range Max: 3m
- Supply Voltage DC Min: 12V
- Supply Voltage DC Max: 24V
- Output Current: 100mA
- Product Range: CX-400 Series
