PANASONIC EX-31B, PHOTOELECTRIC SENSOR, EX-30 SERIES
Starting At: $120.90
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: EX-31B
IMS Product Code: 1761806
Packaging: Sold Individually
Description:

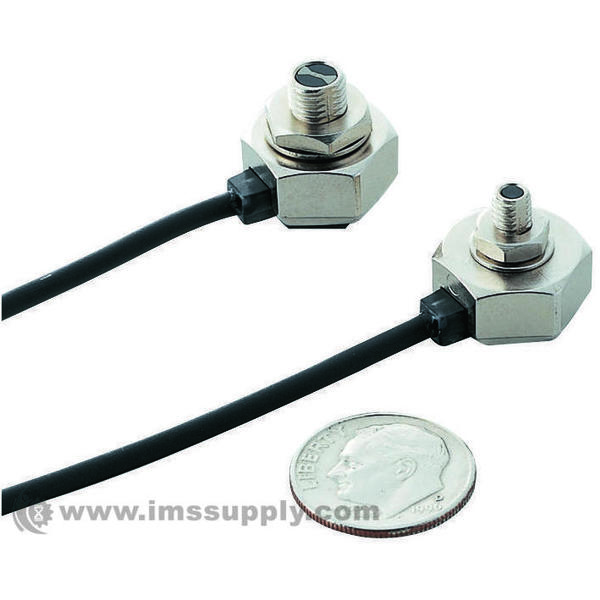

Panasonic EX-31B, Photoelectric Sensor, EX-30 Series, Ultra Compact, Through-Beam, 500mm, NPN, 12 to 24V, Dark-ON
The EX-30 series threaded miniature Photoelectric Sensor with amplifier built-in. The EX-30 series solves all of the difficulties associated with fibre sensors, such as - difficulty finding a suitable place for the amplifier, fragility of the fibre, extra space needed because of difficulty in bending the fibre, the nuisance of having to use a protective tube to prevent fibre breakage. The EX-30 series achieves reductions in power consumption of up to 65%. The EX-30 series achieves long distance sensing (thru-beam type - 500mm 19.685 inch (EX-33(-PN) - 800mm 31.496 inch), reflective type - 50mm 1.969 inch).
- Globally usable
- Thru-beam types feature operation mode switch and sensitivity adjuster
- Can be installed in the same way as standard fibres
- Single-point tightening cuts down on installation work by half
- Incorporated an inverter countermeasure circuit
- Bright 2-color indicator
- No protective tube needed
- Incorporates a sensitivity adjuster
- Waterproof IP67 (IEC)
- Sensor Output: NPN
- Sensing Range Max: 500mm
- Supply Voltage DC Min: 12V
- Supply Voltage DC Max: 24V
- Output Current: 50mA
- Product Range: EX-30 Series
