PANASONIC FD-42G-4T DIFFUSE COAXIAL FIBER OPTIC CABLE
Starting At: $93.60
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FD-42G-4T
IMS Product Code: 1972752
Packaging: Sold Individually
Description:

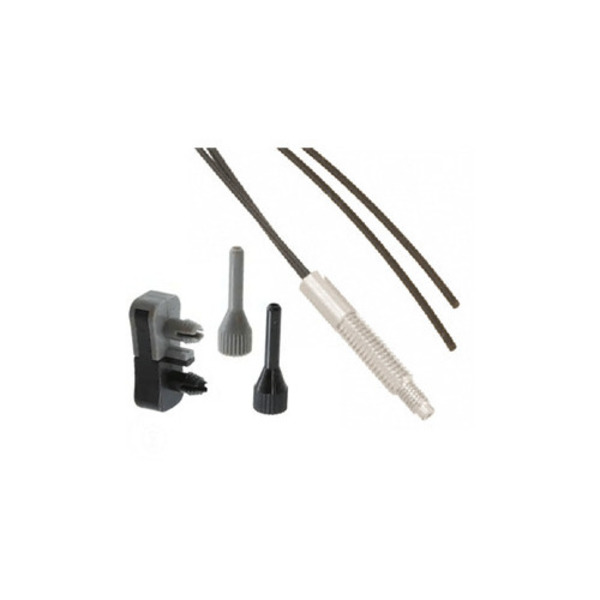

Panasonic FD-42G-4T Diffuse Coaxial Fiber Optic Cable, M4 Threaded, 4m R2 High-Flex Cuttable Cable, M4 Threaded Barrel 20mm Long Plus 5mm M3 Threaded Tip, Can Be Used With Focusing Lenses, 4 Meter Free-cut Cable With 2mm Bending Radius
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Thread Mount
- Sensing Mode: Diffuse Coaxial
- Key Attributes: Axial Sensing
- Lens Compatible: Add-On Lens Compatible
- Mounting Body Style: M4
- Mounting Dimension: M4 x 25mm
- Fiber Cable Feature: For High Precision Beam Spot use the following add-on lens: FX-MR2 for adjustable Ø 0.7mm to Ø 2.0 spot at 18mm to 43mm distance, FX-MR6 for Ø0.4mm at 7mm distance, FX-MR3 for Ø0.5mm at 7mm distance. Other lens options are available.
- Fiber Cable Bend Radius: R2 High-flex
- Cuttable / Non-Cuttable: Cuttable
- Fiber Length: 4 meter
- Fiber Core: Ø 0.25mm x 9 / Ø 0.5mm x 1
- Temperature Rating: -55 to +80° C
- Includes: FX-AT6 black/grey attachment w/tips for Ø2.2 / Ø1.0mm cuttable fibers, and fiber cutter
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
