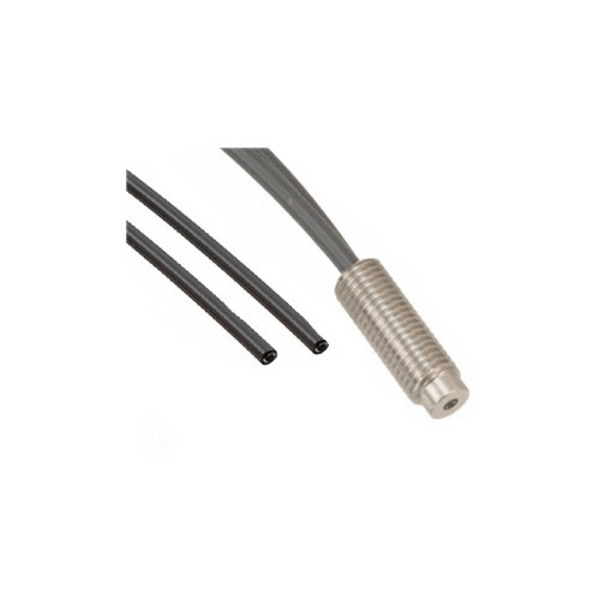

PANASONIC FD-61G-5T DIFFUSE COAXIAL FIBER OPTIC CABLE
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FD-61G-5T
IMS Product Code: 1972767
Packaging: Sold Individually
Description:
Panasonic FD-61G-5T Diffuse Coaxial Fiber Optic Cable, M6 Threaded, 5m R4 High-Flex Cuttable Cable, M6 Threaded Barrel 17mm Long, 5 Meter Free-cut Cable With 2mm Bending Radius
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Thread Mount
- Sensing Mode: Diffuse Coaxial
- Key Attributes: Axial Sensing
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: M6
- Mounting Dimension: M6 x 17mm
- Fiber Cable Feature: Featues SUS body, nuts, locking washers. Beam Axis deviation within ±3°
- Fiber Cable Bend Radius: R4 High-flex
- Cuttable / Non-Cuttable: Cuttable
- Fiber Length: 5 meter
- Fiber Core: Ø 0.25mm x 16 / Ø 1.0mm x 1
- Temperature Rating: -55 to +80° C
- Includes: FX-AT3 transclucent orange attachment for Ø2.2mm cuttable fibers, fiber cutter
